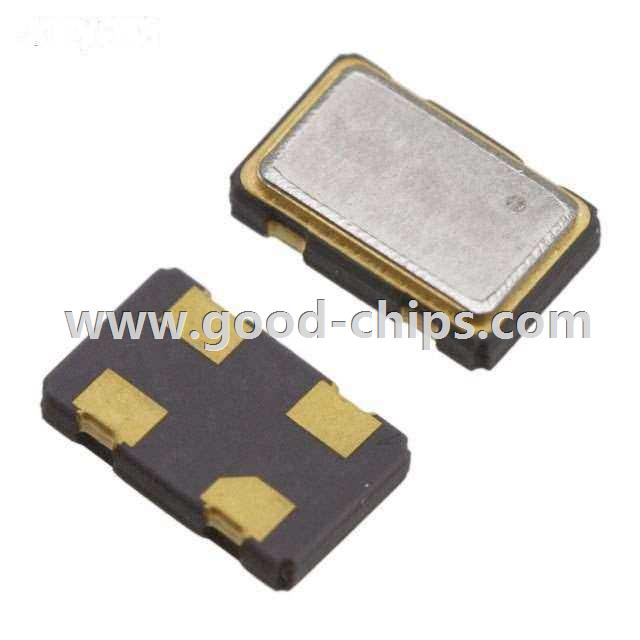

| Manufacturer Part Number: | ASSFLP1-C04 |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Programmable Oscillators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 13MHz ~ 160MHz CMOS XO (Standard) Programmable Oscillator Surface Mount 2.5V 30mA Standby |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ASSFLP1-C04 Datasheet |
| Internal Part Number | 898-ASSFLP1-C04 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | ULN Spread-Spectrum Oscillators AppNote | |
| Featured Product | Oscillator Series ASSVP and ASSFLP | |
| 3D Model | ASSFLP.pdf ASSFLP.stp | |
| Online Catalog | ASSFLP Series with Ordering Guide | |
| Category | Crystals and Oscillators | |
| Family | Programmable Oscillators | |
| Manufacturer | Abracon LLC | |
| Series | ASSFLP | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | XO (Standard) | |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | |
| Available Frequency Range | 13MHz ~ 160MHz | |
| Function | Standby | |
| Output | CMOS | |
| Voltage - Supply | 2.5V | |
| Frequency Stability | - | |
| Frequency Stability (Total) | ±50ppm | |
| Operating Temperature | -40°C ~ 85°C | |
| Spread Spectrum Bandwidth | ±0.50%, Center Spread | |
| Current - Supply (Max) | 30mA | |
| Ratings | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD, No Lead (DFN, LCC) | |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) | |
| Height | 0.051" (1.30mm) | |
| Current - Supply (Disable) (Max) | - | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ASSFLP1-C04 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ASSFLP1-C04 is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ASSFLP1-C04 is new and unused, you can buy ASSFLP1-C04 Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASSFLP1-C04.
