Manufacturer Part Number: | ASSVP1-D08 |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Programmable Oscillators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

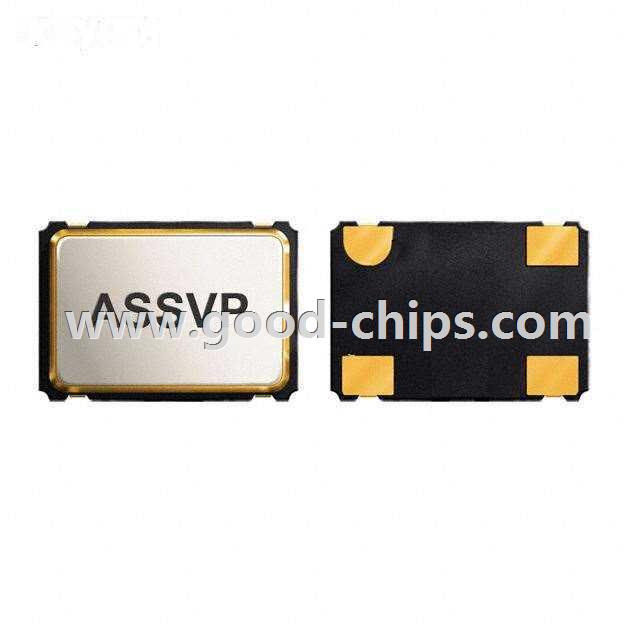

Description: | 10MHz ~ 160MHz CMOS XO (Standard) Programmable Oscillator Surface Mount 2.5V 30mA Standby |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ASSVP1-D08 Datasheet |
Internal Part Number | 898-ASSVP1-D08 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Mfg Application Notes | ULN Spread-Spectrum Oscillators AppNote | |
Featured Product | Oscillator Series ASSVP and ASSFLP | |
3D Model | ASSVP.pdf ASSVP.stp | |
Online Catalog | ASSVP Series with Ordering Guide | |
Category | Crystals and Oscillators | |
Family | Programmable Oscillators | |
Manufacturer | Abracon LLC | |
Series | ASSVP | |
Packaging | Bulk | |
Part Status | Active | |
Type | XO (Standard) | |
Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | |
Available Frequency Range | 10MHz ~ 160MHz | |
Function | Standby | |
Output | CMOS | |
Voltage - Supply | 2.5V | |
Frequency Stability | - | |
Frequency Stability (Total) | ±50ppm | |
Operating Temperature | -40°C ~ 85°C | |
Spread Spectrum Bandwidth | -2.00%, Down Spread | |
Current - Supply (Max) | 30mA | |
Ratings | - | |
Mounting Type | Surface Mount | |
Package / Case | 4-SMD, No Lead (DFN, LCC) | |
Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | |
Height | 0.055" (1.40mm) | |
Current - Supply (Disable) (Max) | - | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ASSVP1-D08 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ASSVP1-D08 is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ASSVP1-D08 is new and unused, you can buy ASSVP1-D08 Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASSVP1-D08.
