Manufacturer Part Number: | ATA6613-EK |
---|---|
Manufacturer: | Atmel |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9014 Pieces |
Unit Price: | Quote by Email |

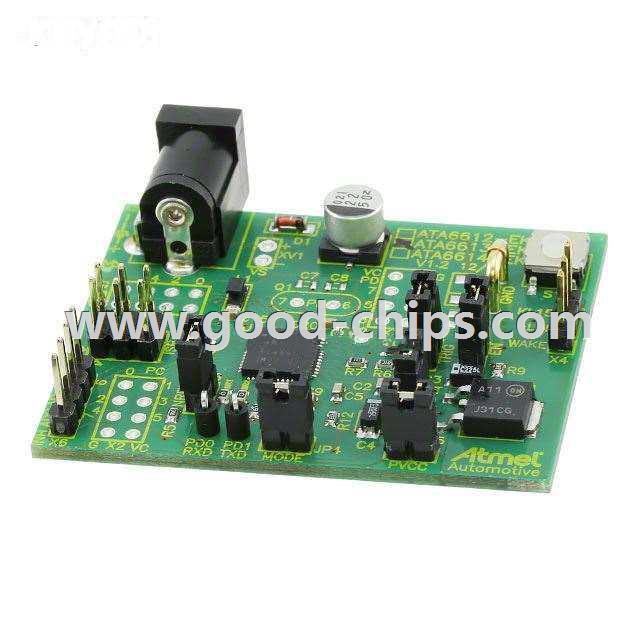

Description: | ATA6613 - Interface, LIN + MCU Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ATA6613-EK Datasheet |
Internal Part Number | 898-ATA6613-EK | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | MCU Product Line Introduction | |
Video File | Introducing Atmel Studio 7 | |
Design Resources | Development Tool Selector | |
Online Catalog | ATA6612, ATA6613 and ATA6614 Development Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Atmel | |
Series | - | |
Part Status | Active | |
Main Purpose | Interface, LIN + MCU | |
Embedded | Yes, MCU, 8-Bit | |
Utilized IC / Part | ATA6613 | |
Primary Attributes | LIN-SBC (System-Basis-Chip) Transceiver, LIN 2.0, Voltage Regulator, Window Watchdog | |
Secondary Attributes | 16kB Flash, 4 Power Modes: Pre-Normal, Normal, Sleep, Silent, 48-QFN | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ATA6613-EK | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ATA6613-EK is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATA6613-EK is new and unused, you can buy ATA6613-EK Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATA6613-EK.
