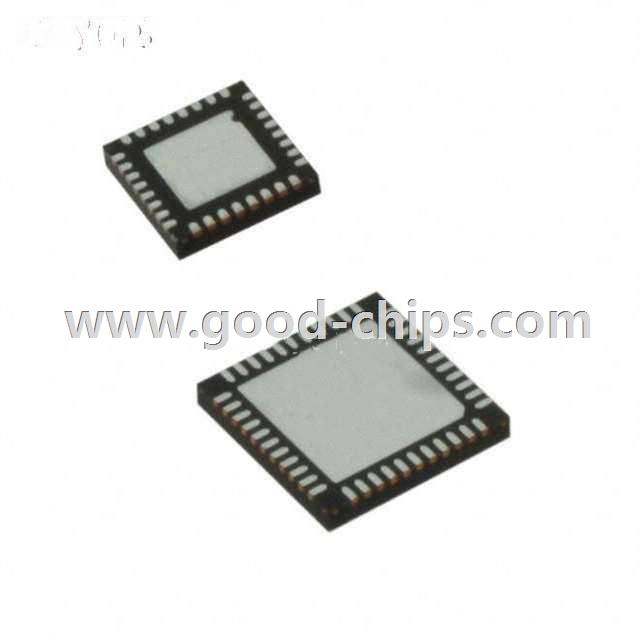

| Manufacturer Part Number: | ATMEGA1284PR212-MU |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | RF Transceiver ICs |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC RF TxRx + MCU 802.15.4, General ISM < 1GHz 6LoWPAN, Zigbee® 769MHz ~ 935MHz 44-QFN, 32-QFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATMEGA1284PR212-MU Datasheet |
| Internal Part Number | 898-ATMEGA1284PR212-MU | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | megaAVR Introduction Introduction to ZigBee Low Power Wireless Networks Introduction to IEEE 802.15.4 Low Power Wireless Networks | |
| Video File | Introducing Atmel Studio 7 | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver ICs | |
| Manufacturer | Atmel | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | TxRx + MCU | |
| RF Family/Standard | 802.15.4, General ISM < 1GHz | |
| Protocol | 6LoWPAN, Zigbee® | |
| Modulation | DSSS, BPSK, O-QPSK | |
| Frequency | 769MHz ~ 935MHz | |
| Data Rate (Max) | 1Mbps | |
| Power - Output | 10dBm | |
| Sensitivity | -110dBm | |
| Memory Size | 128kB Flash, 4kB EEPROM, 16kB SRAM | |
| Serial Interfaces | SPI | |
| GPIO | 32 | |
| Voltage - Supply | 1.8 V ~ 3.6 V | |
| Current - Receiving | 8.7mA ~ 9.2mA | |
| Current - Transmitting | 13mA ~ 25mA | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | 44-QFN, 32-QFN | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATMEGA1284PR212-MU | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATMEGA1284PR212-MU is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATMEGA1284PR212-MU is new and unused, you can buy ATMEGA1284PR212-MU Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATMEGA1284PR212-MU.
