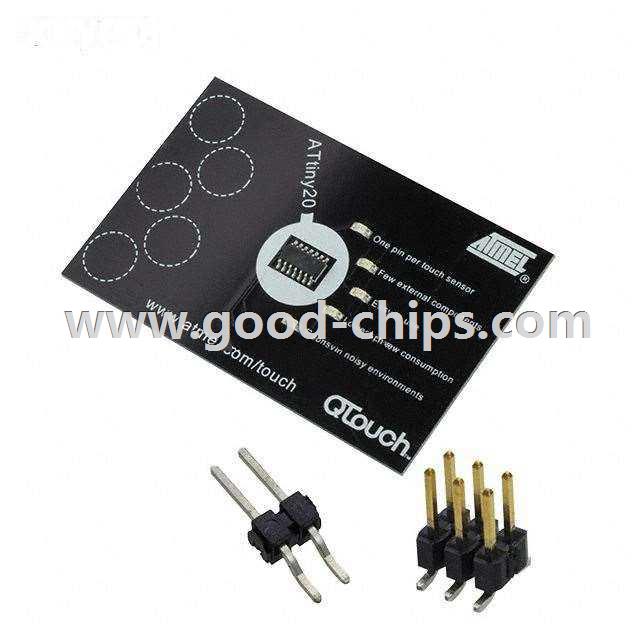

| Manufacturer Part Number: | ATTINY20-EK1 |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | ATtiny20 - Touch, Capacitive Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATTINY20-EK1 Datasheet |
| Internal Part Number | 898-ATTINY20-EK1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | tinyAVR Introduction | |
| Video File | Introducing Atmel Studio 7 | |
| Design Resources | Development Tool Selector | |
| PCN Obsolescence/ EOL | WE154801 OBS 07/Dec/2015 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | Atmel | |
| Series | - | |
| Part Status | Obsolete | |
| Sensor Type | Touch, Capacitive | |
| Sensing Range | - | |
| Interface | - | |
| Sensitivity | - | |
| Voltage - Supply | - | |
| Embedded | Yes, MCU, 8-Bit | |
| Supplied Contents | Board | |
| Utilized IC / Part | ATtiny20 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATTINY20-EK1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATTINY20-EK1 is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATTINY20-EK1 is new and unused, you can buy ATTINY20-EK1 Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATTINY20-EK1.
