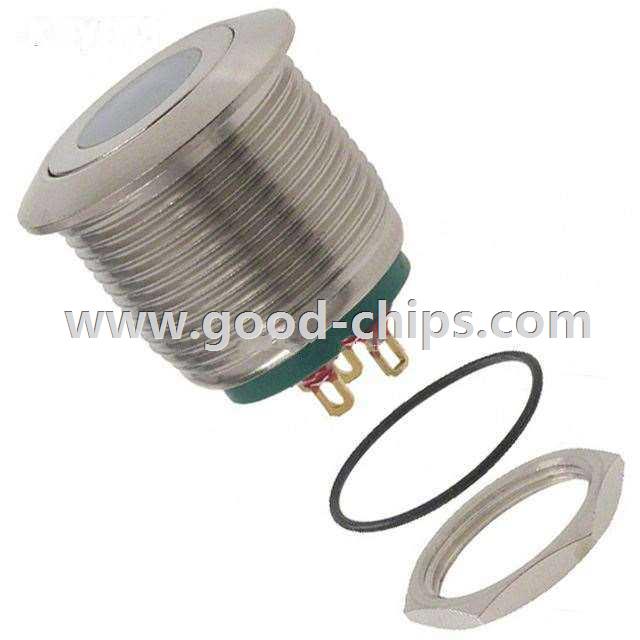

| Manufacturer Part Number: | AV09C7L3D2003K |
|---|---|
| Manufacturer: | Apem Inc. |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 9641 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pushbutton Switch SPST-NO Vandal Resistant, Illuminated Panel Mount, Front |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AV09C7L3D2003K Datasheet |
| Internal Part Number | 898-AV09C7L3D2003K | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | AV Series | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | Apem Inc. | |
| Series | AV | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Vandal Resistant, Illuminated | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Current Rating | 50mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 24V | |
| Actuator Type | Round, Button, Flush | |
| Color - Actuator/Cap | Silver | |
| Illumination Type, Color | LED, Green | |
| Illumination Voltage (Nominal) | 2 VDC | |
| Mounting Type | Panel Mount, Front | |
| Termination Style | Solder Lug | |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | |
| Features | Sealed - Fully | |
| Panel Cutout Dimensions | Circular - 19.20mm Dia | |
| Operating Temperature | -30°C ~ 70°C | |
| Mechanical Life | 100,000 Cycles | |
| Electrical Life | 1,000,000 Cycles | |
| Standard Package | 40 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AV09C7L3D2003K | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AV09C7L3D2003K is in stock for immediate shipping now. We are the distributor of Apem Inc. all series components. The condition of AV09C7L3D2003K is new and unused, you can buy AV09C7L3D2003K Apem Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AV09C7L3D2003K.
