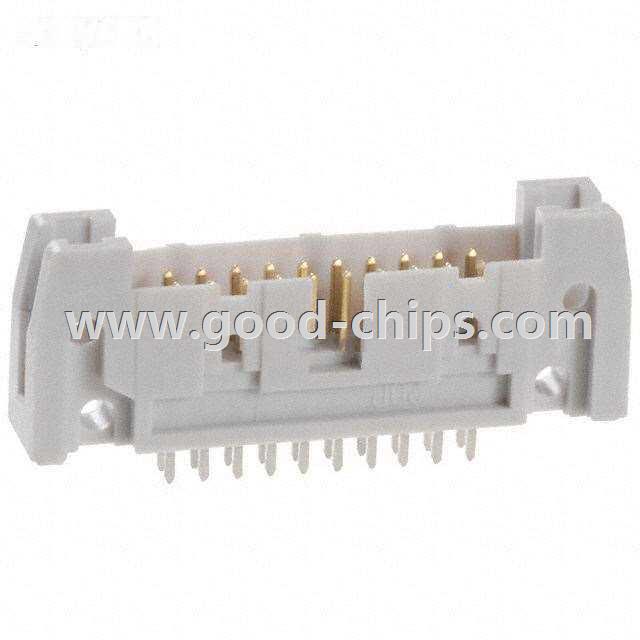

Manufacturer Part Number: | AWH20G-0202-T-R |
---|---|
Manufacturer: | Assmann WSW Components |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9071 Pieces |
Unit Price: | Quote by Email |
Description: | 20 Positions Header, Shrouded Connector 0.100" (2.54mm) Through Hole Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AWH20G-0202-T-R Datasheet |
Internal Part Number | 898-AWH20G-0202-T-R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | Assmann WSW Components | |
Series | - | |
Packaging | Tray | |
Part Status | Obsolete | |
Contact Type | Male Pin | |
Connector Type | Header, Shrouded | |
Number of Positions | 20 | |
Number of Positions Loaded | All | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Row Spacing | 0.100" (2.54mm) | |
Contact Mating Length | - | |
Mounting Type | Through Hole | |
Termination | Solder | |
Fastening Type | - | |
Features | - | |
Contact Finish | Gold | |
Contact Finish Thickness | Flash | |
Color | Gray | |
Standard Package | 120 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AWH20G-0202-T-R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AWH20G-0202-T-R is in stock for immediate shipping now. We are the distributor of Assmann WSW Components all series components. The condition of AWH20G-0202-T-R is new and unused, you can buy AWH20G-0202-T-R Assmann WSW Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AWH20G-0202-T-R.
