| Manufacturer Part Number: | AWH20G-E222-IDC-R |
|---|---|
| Manufacturer: | Assmann WSW Components |
| Product Category: | Rectangular Connectors - Free Hanging, Panel Mount |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

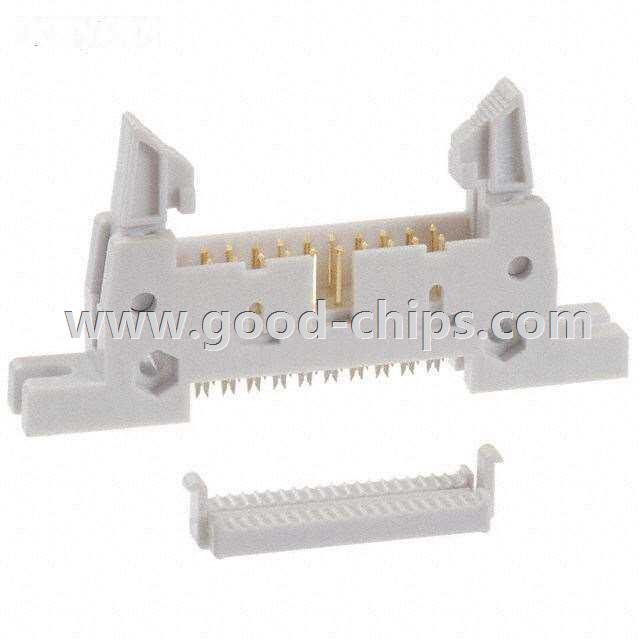

| Description: | 20 Position Rectangular Header Connector IDC Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AWH20G-E222-IDC-R Datasheet |
| Internal Part Number | 898-AWH20G-E222-IDC-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Assmann - IDC Connectors and Cables | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Free Hanging, Panel Mount | |
| Manufacturer | Assmann WSW Components | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Connector Type | Header | |
| Contact Type | Male Pin | |
| Number of Positions | 20 | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Mounting Type | Panel Mount | |
| Fastening Type | Latch Lock/Eject Hooks, Short | |
| Cable Termination | IDC | |
| Wire Type | Ribbon Cable | |
| Wire Gauge | - | |
| Features | Feed Through | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Color | Gray | |
| Standard Package | 84 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AWH20G-E222-IDC-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AWH20G-E222-IDC-R is in stock for immediate shipping now. We are the distributor of Assmann WSW Components all series components. The condition of AWH20G-E222-IDC-R is new and unused, you can buy AWH20G-E222-IDC-R Assmann WSW Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AWH20G-E222-IDC-R.
