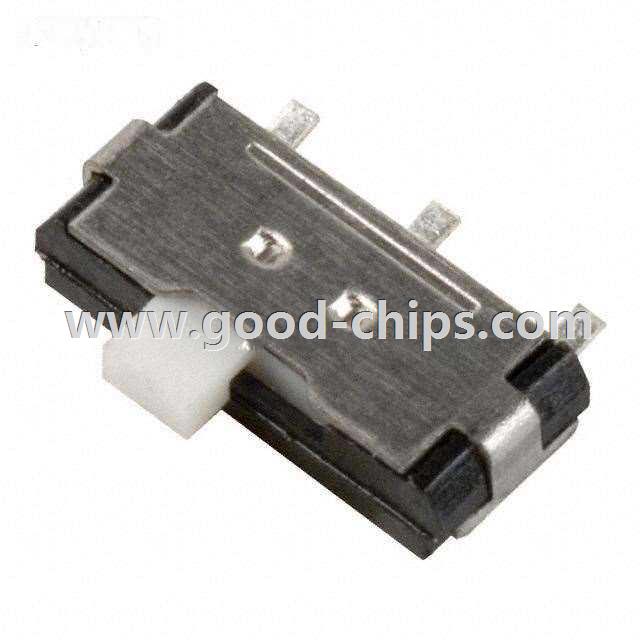

Manufacturer Part Number: | AYZ0102AGRLC |
---|---|
Manufacturer: | C&K Components |
Product Category: | Slide Switches |
Available Quantity: | 33010 Pieces |
Unit Price: | Quote by Email |
Description: | Slide Switch SPDT Surface Mount, Right Angle |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AYZ0102AGRLC Datasheet |
Internal Part Number | 898-AYZ0102AGRLC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Introduction to Electromechanical Switches | |
3D Model | AYZ0102AGRLC.stp AYZ0102AGRLC.pdf | |
Online Catalog | AYZ Series | |
Category | Switches | |
Family | Slide Switches | |
Manufacturer | C&K Components | |
Series | AYZ | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Circuit | SPDT | |
Contact Timing | Not Specified | |
Switch Function | On-On | |
Current Rating | 100mA (DC) | |
Voltage Rating - AC | - | |
Voltage Rating - DC | 12V | |
Actuator Type | Standard | |
Actuator Length | 1.00mm | |
Contact Material | Copper Alloy | |
Contact Finish | Silver | |
Mounting Type | Surface Mount, Right Angle | |
Termination Style | Gull Wing | |
Features | - | |
Actuator Material | Polyamide (PA46), Nylon 4/6, Glass Filled | |
Switch Travel | - | |
Operating Temperature | -10°C ~ 60°C | |
Mechanical Life | 10,000 Cycles | |
Electrical Life | - | |
Operating Force | - | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AYZ0102AGRLC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AYZ0102AGRLC is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of AYZ0102AGRLC is new and unused, you can buy AYZ0102AGRLC C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AYZ0102AGRLC.
