| Manufacturer Part Number: | B32023A3563M |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Film Capacitors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

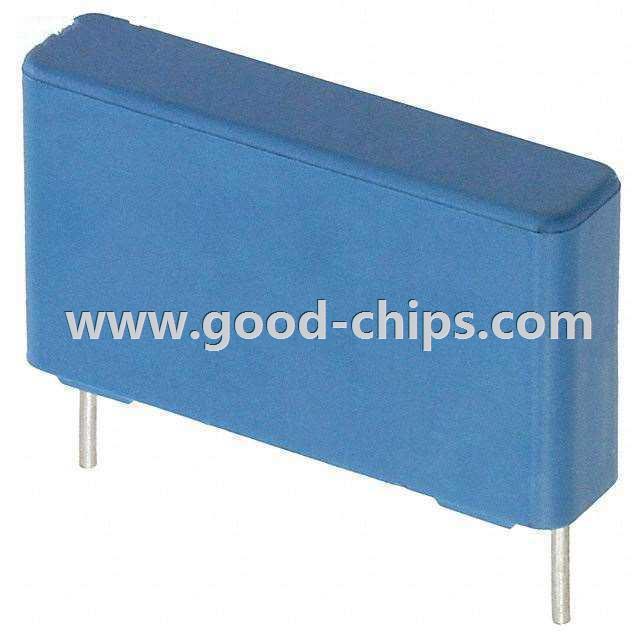

| Description: | 0.056µF Film Capacitor 300V 1500V (1.5kV) Polypropylene (PP), Metallized Radial 1.043" L x 0.236" W (26.50mm x 6.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B32023A3563M Datasheet |
| Internal Part Number | 898-B32023A3563M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Automotive Industry Capacitors | |
| Featured Product | Film Capacitors | |
| PCN Packaging | MKT, MKP Type Laser Marking 26/Apr/2013 | |
| Category | Capacitors | |
| Family | Film Capacitors | |
| Manufacturer | EPCOS (TDK) | |
| Series | B32023 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Capacitance | 0.056µF | |
| Tolerance | ±20% | |
| Voltage Rating - AC | 300V | |
| Voltage Rating - DC | 1500V (1.5kV) | |
| Dielectric Material | Polypropylene (PP), Metallized | |
| ESR (Equivalent Series Resistance) | - | |
| Operating Temperature | -40°C ~ 110°C | |
| Mounting Type | Through Hole | |
| Package / Case | Radial | |
| Size / Dimension | 1.043" L x 0.236" W (26.50mm x 6.00mm) | |
| Height - Seated (Max) | 0.591" (15.00mm) | |
| Termination | PC Pins | |
| Lead Spacing | 0.886" (22.50mm) | |
| Applications | EMI, RFI Suppression | |
| Features | Y2 Safety Rated | |
| Standard Package | 2,880 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B32023A3563M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B32023A3563M is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B32023A3563M is new and unused, you can buy B32023A3563M EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B32023A3563M.
