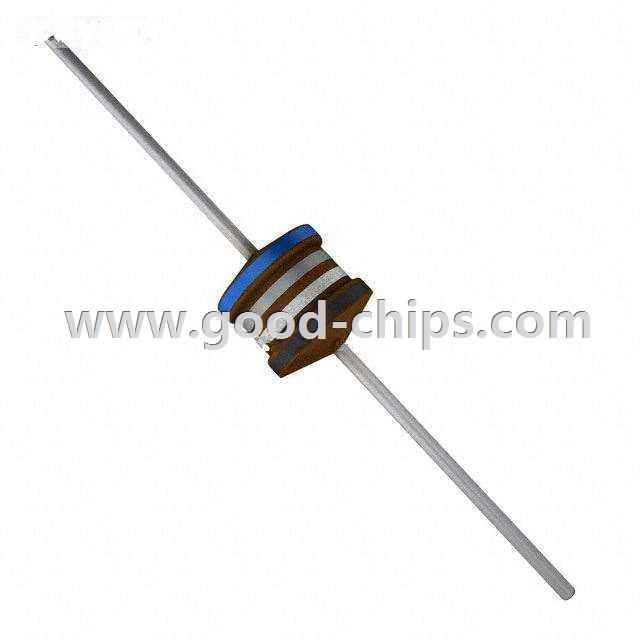

| Manufacturer Part Number: | B78108E1681M000 |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 680nH Unshielded Wirewound Inductor 4.6A 31 mOhm Max Axial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B78108E1681M000 Datasheet |
| Internal Part Number | 898-B78108E1681M000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | BC and BC+ Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | EPCOS (TDK) | |
| Series | BC+ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 680nH | |
| Tolerance | ±20% | |
| Current Rating | 4.6A | |
| Current - Saturation | 7.1A | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 31 mOhm Max | |
| Q @ Freq | 60 @ 7.96MHz | |
| Frequency - Self Resonant | 360MHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 1MHz | |
| Mounting Type | Through Hole | |
| Package / Case | Axial | |
| Size / Dimension | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | |
| Height - Seated (Max) | - | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B78108E1681M000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B78108E1681M000 is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B78108E1681M000 is new and unused, you can buy B78108E1681M000 EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B78108E1681M000.
