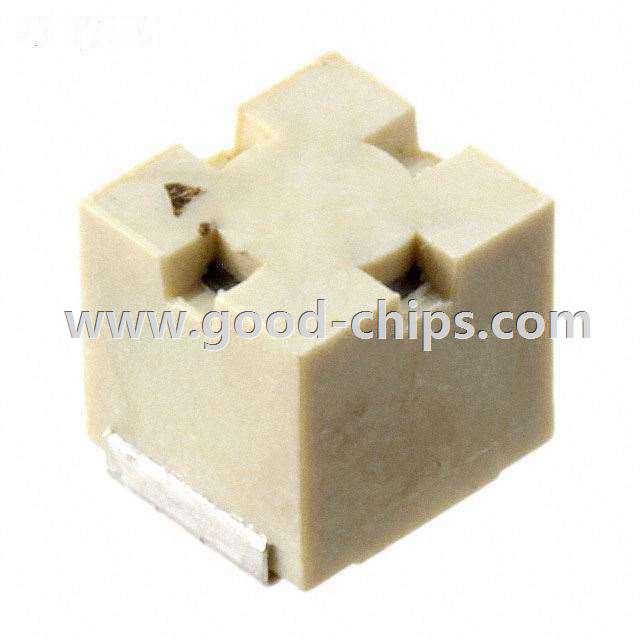

| Manufacturer Part Number: | B82442A1682K |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Fixed Inductors |
| Available Quantity: | 10510 Pieces |
| Unit Price: | Quote by Email |
| Description: | 6.8µH Unshielded Wirewound Inductor 810mA 120 mOhm Max 2-SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B82442A1682K Datasheet |
| Internal Part Number | 898-B82442A1682K | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | SIMID Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | EPCOS (TDK) | |
| Series | SIMID | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 6.8µH | |
| Tolerance | ±10% | |
| Current Rating | 810mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 120 mOhm Max | |
| Q @ Freq | 10 @ 7.96MHz | |
| Frequency - Self Resonant | 24MHz | |
| Ratings | AEC-Q200 | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 7.96MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-SMD | |
| Size / Dimension | 0.221" L x 0.197" W (5.60mm x 5.00mm) | |
| Height - Seated (Max) | * | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B82442A1682K | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B82442A1682K is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82442A1682K is new and unused, you can buy B82442A1682K EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82442A1682K.
