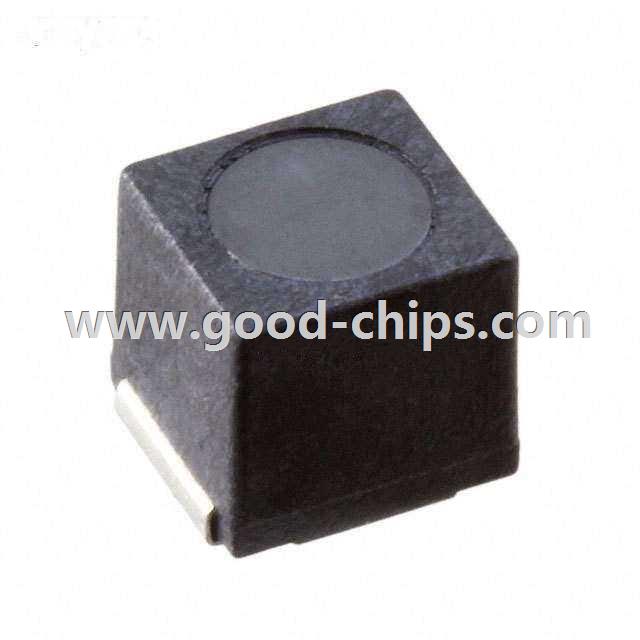

Manufacturer Part Number: | B82442T1473K50 |
---|---|
Manufacturer: | EPCOS (TDK) |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 47µH Unshielded Wirewound Inductor 700mA 519 mOhm Max 2-SMD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | B82442T1473K50 Datasheet |
Internal Part Number | 898-B82442T1473K50 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | B82442T 22/Nov/2013 | |
Online Catalog | SIMID Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | EPCOS (TDK) | |
Series | SIMID | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 47µH | |
Tolerance | ±10% | |
Current Rating | 700mA | |
Current - Saturation | 1.12A | |
Shielding | Unshielded | |
DC Resistance (DCR) | 519 mOhm Max | |
Q @ Freq | 15 @ 2.52MHz | |
Frequency - Self Resonant | 8MHz | |
Ratings | AEC-Q200 | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 2.52MHz | |
Mounting Type | Surface Mount | |
Package / Case | 2-SMD | |
Size / Dimension | 0.221" L x 0.197" W (5.60mm x 5.00mm) | |
Height - Seated (Max) | * | |
Standard Package | 1,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | B82442T1473K50 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
B82442T1473K50 is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82442T1473K50 is new and unused, you can buy B82442T1473K50 EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82442T1473K50.
