Manufacturer Part Number: | B82477R4103M100 |
---|---|
Manufacturer: | EPCOS (TDK) |
Product Category: | Fixed Inductors |
Available Quantity: | 9710 Pieces |
Unit Price: | Quote by Email |
Description: | 10µH Shielded Wirewound Inductor 6.2A 18.5 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | B82477R4103M100 Datasheet |
Internal Part Number | 898-B82477R4103M100 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |

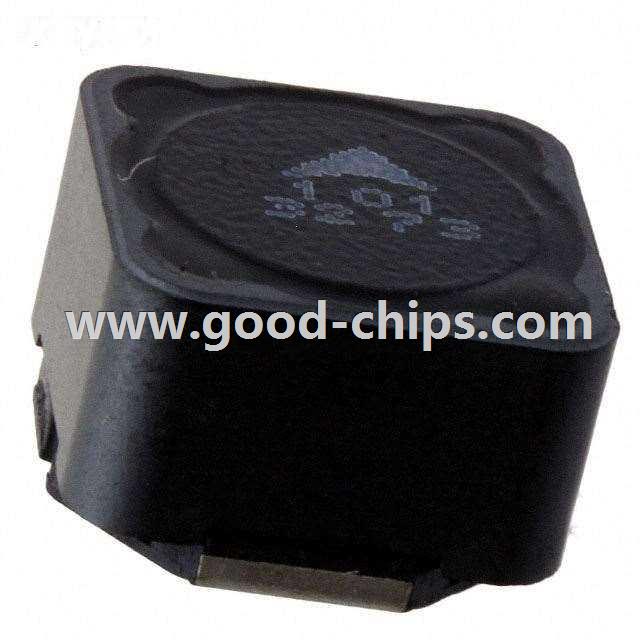

Featured Product | B82477R Series SMT Inductors | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | B82477R4 Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | EPCOS (TDK) | |
Series | B82477R4 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 10µH | |
Tolerance | ±20% | |
Current Rating | 6.2A | |
Current - Saturation | 8.75A | |
Shielding | Shielded | |
DC Resistance (DCR) | 18.5 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | AEC-Q200 | |
Operating Temperature | -55°C ~ 150°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | |
Height - Seated (Max) | 0.335" (8.50mm) | |
Standard Package | 350 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | B82477R4103M100 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
B82477R4103M100 is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82477R4103M100 is new and unused, you can buy B82477R4103M100 EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82477R4103M100.
