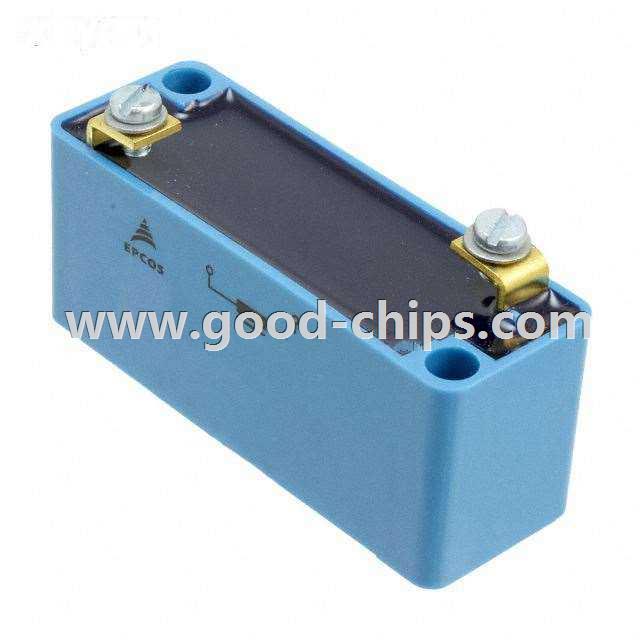

| Manufacturer Part Number: | B82504WA16 |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9040 Pieces |
| Unit Price: | Quote by Email |
| Description: | 120µH @ 100kHz 2 Line Common Mode Choke Chassis Mount 16A DCR 19 mOhm (Typ) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B82504WA16 Datasheet |
| Internal Part Number | 898-B82504WA16 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | I Core Chokes 10/Jun/2016 | |
| Online Catalog | B82504 Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | EPCOS (TDK) | |
| Series | B82504 | |
| Packaging | Tray | |
| Part Status | Last Time Buy | |
| Filter Type | Power Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | - | |
| Inductance @ Frequency | 120µH @ 100kHz | |
| Current Rating (Max) | 16A | |
| DC Resistance (DCR) (Max) | 19 mOhm (Typ) | |
| Voltage Rating - DC | 600V | |
| Voltage Rating - AC | 500V | |
| Operating Temperature | - | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 3.07" L x 1.10" W (78.0mm x 28.0mm) | |
| Height (Max) | 1.457" (37.00mm) | |
| Package / Case | - | |
| Standard Package | 48 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B82504WA16 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B82504WA16 is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82504WA16 is new and unused, you can buy B82504WA16 EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82504WA16.
