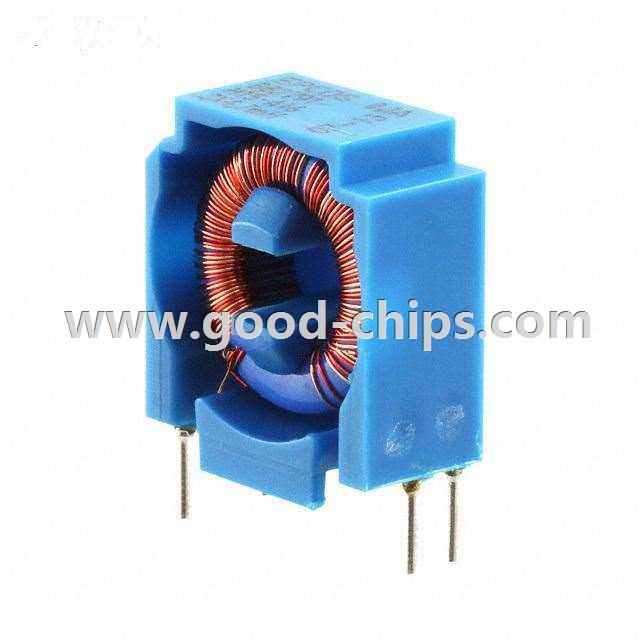

| Manufacturer Part Number: | B82791H15A25 |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9943 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10mH @ 10kHz 2 Line Common Mode Choke Through Hole 100mA DCR 1.2 Ohm (Typ) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B82791H15A25 Datasheet |
| Internal Part Number | 898-B82791H15A25 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | B82791 Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | EPCOS (TDK) | |
| Series | B82791 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | - | |
| Inductance @ Frequency | 10mH @ 10kHz | |
| Current Rating (Max) | 100mA | |
| DC Resistance (DCR) (Max) | 1.2 Ohm (Typ) | |
| Voltage Rating - DC | 80V | |
| Voltage Rating - AC | 42V | |
| Operating Temperature | -40°C ~ 125°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Through Hole | |
| Size / Dimension | 0.598" L x 0.291" W (15.20mm x 7.40mm) | |
| Height (Max) | 0.693" (17.60mm) | |
| Package / Case | Vertical, 4 PC Pin | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B82791H15A25 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B82791H15A25 is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82791H15A25 is new and unused, you can buy B82791H15A25 EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82791H15A25.
