| Manufacturer Part Number: | BAS16X-TP |
|---|---|
| Manufacturer: | Micro Commercial Co |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 65010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE GEN PURP 75V 200MA SOD523 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BAS16X-TP Datasheet |
| Internal Part Number | 898-BAS16X-TP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Diode Handling and Mounting | |
| PCN Packaging | SOD-523 Reel Qty 23/Feb/2012 | |
| Online Catalog | Standard Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Micro Commercial Co | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 75V | |
| Current - Average Rectified (Io) | 200mA (DC) | |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 150mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 6ns | |
| Current - Reverse Leakage @ Vr | 1µA @ 75V | |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz | |
| Mounting Type | Surface Mount | |

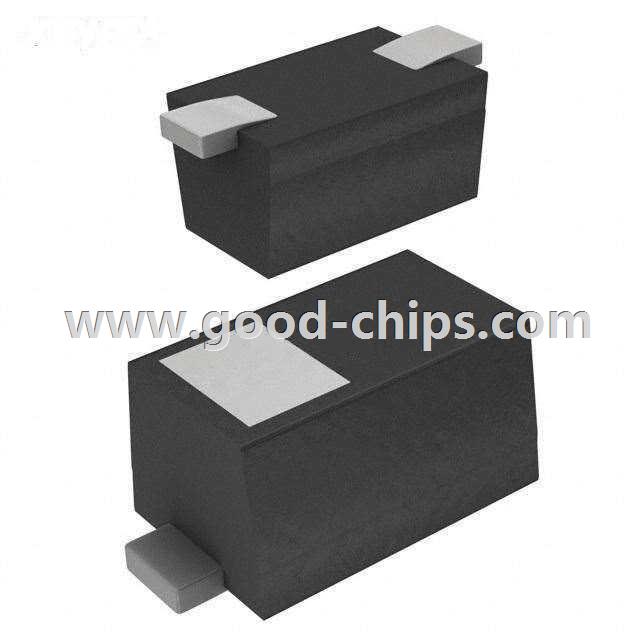

| Package / Case | SC-79, SOD-523 | |
| Supplier Device Package | SOD-523 | |
| Operating Temperature - Junction | -55°C ~ 150°C | |
| Standard Package | 8,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BAS16X-TP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BAS16X-TP is in stock for immediate shipping now. We are the distributor of Micro Commercial Co all series components. The condition of BAS16X-TP is new and unused, you can buy BAS16X-TP Micro Commercial Co with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BAS16X-TP.
