| Manufacturer Part Number: | BC419143B-ANN-E4 |
|---|---|
| Manufacturer: | CSR PLC |
| Product Category: | RF Transceiver ICs |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC RF TxRx + MCU Bluetooth Bluetooth v1.1, v1.2, Class 1, 2 and 3 2.4GHz 96-LFBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BC419143B-ANN-E4 Datasheet |
| Internal Part Number | 898-BC419143B-ANN-E4 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| PCN Packaging | CSR Product Mark, Pkg, Label Update 29/Apr/2016 | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver ICs | |
| Manufacturer | CSR PLC | |
| Series | BlueCore® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | TxRx + MCU | |
| RF Family/Standard | Bluetooth | |
| Protocol | Bluetooth v1.1, v1.2, Class 1, 2 and 3 | |
| Modulation | - | |
| Frequency | 2.4GHz | |
| Data Rate (Max) | 3Mbps | |
| Power - Output | 4dBm | |
| Sensitivity | -85dBm | |
| Memory Size | 8MB Flash, 48kB RAM | |
| Serial Interfaces | - | |
| GPIO | - | |
| Voltage - Supply | 1.7 V ~ 3.6 V | |
| Current - Receiving | - | |
| Current - Transmitting | - | |
| Operating Temperature | -40°C ~ 85°C | |

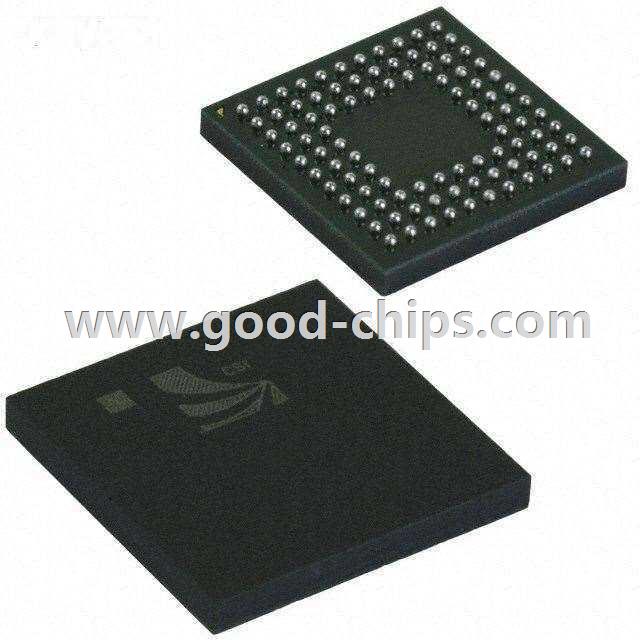

| Package / Case | 96-LFBGA | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BC419143B-ANN-E4 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BC419143B-ANN-E4 is in stock for immediate shipping now. We are the distributor of CSR PLC all series components. The condition of BC419143B-ANN-E4 is new and unused, you can buy BC419143B-ANN-E4 CSR PLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BC419143B-ANN-E4.
