| Manufacturer Part Number: | BH5510KVT-E2 |
|---|---|
| Manufacturer: | Rohm Semiconductor |
| Product Category: | PMIC - Full, Half-Bridge Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC MOTOR DRIVER PAR 48TQFP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BH5510KVT-E2 Datasheet |
| Internal Part Number | 898-BH5510KVT-E2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Manufacturer | Rohm Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Output Configuration | Half Bridge (13) | |
| Applications | DC Motors, General Purpose | |
| Interface | Logic | |
| Load Type | Inductive | |
| Technology | Power MOSFET | |
| Rds On (Typ) | - | |
| Current - Output / Channel | 3A | |
| Current - Peak Output | - | |
| Voltage - Supply | 4 V ~ 5.5 V | |
| Voltage - Load | 3 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Features | - | |
| Fault Protection | Current Limiting, Over Temperature | |
| Mounting Type | Surface Mount | |

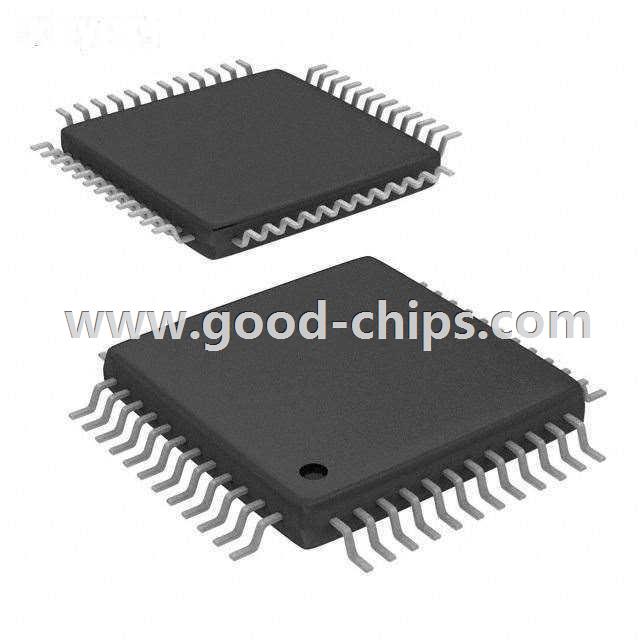

| Package / Case | 48-TQFP | |
| Supplier Device Package | 48-TQFP (7x7) | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BH5510KVT-E2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BH5510KVT-E2 is in stock for immediate shipping now. We are the distributor of Rohm Semiconductor all series components. The condition of BH5510KVT-E2 is new and unused, you can buy BH5510KVT-E2 Rohm Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BH5510KVT-E2.
