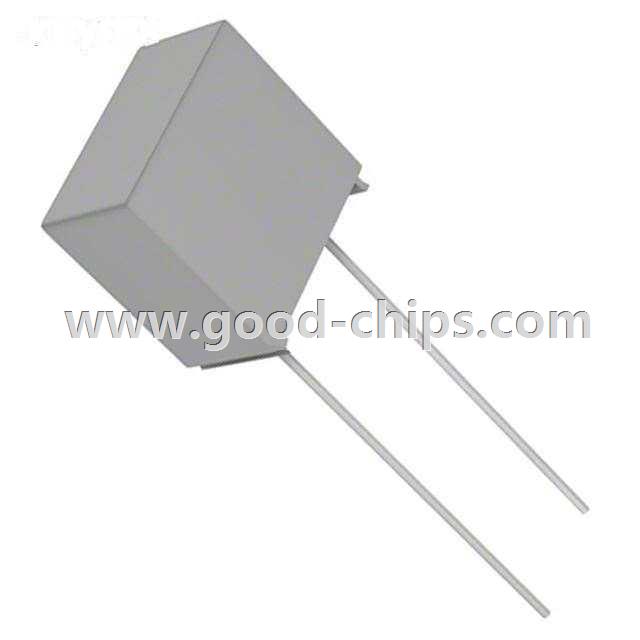

| Manufacturer Part Number: | BK/PCB-1-R |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Fuses |
| Available Quantity: | 10009 Pieces |
| Unit Price: | Quote by Email |
| Description: | FUSE BOARD MNT 1A 250VAC 450VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BK/PCB-1-R Datasheet |
| Internal Part Number | 898-BK/PCB-1-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Selecting Fuses - Simple Procedures for Proper OvercurrentProtection of DC-DC Converters | |
| PCN Design/Specification | Multiple Devices 25/Oct/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | PC-TRON® Series | |
| Category | Circuit Protection | |
| Family | Fuses | |
| Manufacturer | Eaton | |
| Series | PC-Tron® | |
| Packaging | Bulk | |
| Part Status | Active | |
| Fuse Type | Board Mount (Cartridge Style Excluded) | |
| Current Rating | 1A | |
| Voltage Rating - AC | 250V | |
| Voltage Rating - DC | 450V | |
| Response Time | Fast | |
| Package / Case | Radial, Box | |
| Mounting Type | Through Hole | |
| Breaking Capacity @ Rated Voltage | 50A AC, 5.9kA DC | |
| Melting I²t | 0.02 | |
| Approvals | CSA, UL | |
| Operating Temperature | - | |
| Color | - | |
| Size / Dimension | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) | |
| DC Cold Resistance | - | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BK/PCB-1-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BK/PCB-1-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of BK/PCB-1-R is new and unused, you can buy BK/PCB-1-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BK/PCB-1-R.
