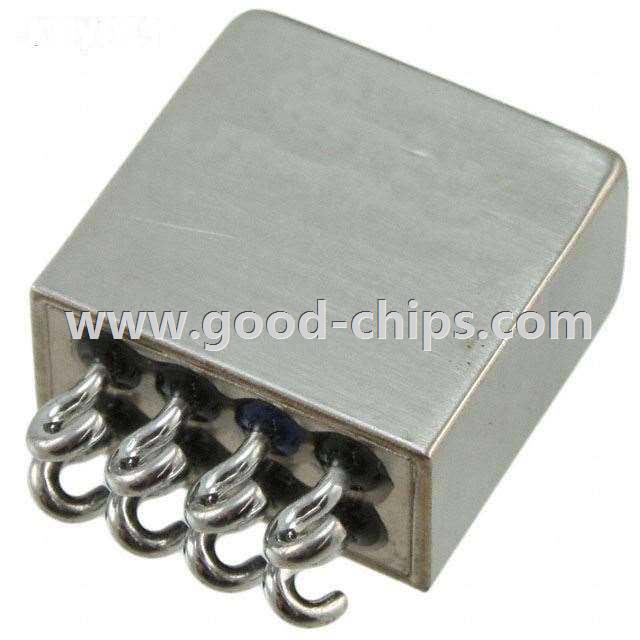

| Manufacturer Part Number: | BR246D-320B1-28V-020M |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Power Relays, Over 2 Amps |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | General Purpose Relay DPDT (2 Form C) 28VDC Coil Chassis Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BR246D-320B1-28V-020M Datasheet |
| Internal Part Number | 898-BR246D-320B1-28V-020M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Relays | |
| Family | Power Relays, Over 2 Amps | |
| Manufacturer | Microsemi Corporation | |
| Series | BR246D | |
| Packaging | Bulk | |
| Part Status | Active | |
| Relay Type | General Purpose | |
| Coil Type | Non Latching | |
| Coil Current | 87.5mA | |
| Coil Voltage | 28VDC | |
| Contact Form | DPDT (2 Form C) | |
| Contact Rating (Current) | 10A | |
| Switching Voltage | 208VAC, 28VDC - Max | |
| Turn On Voltage (Max) | 18 VDC | |
| Turn Off Voltage (Min) | 5.1 VDC | |
| Operate Time | 15ms | |
| Release Time | 15ms | |
| Features | - | |
| Mounting Type | Chassis Mount | |
| Termination Style | Solder Hook | |
| Contact Material | - | |
| Coil Power | 500 mW | |
| Coil Resistance | 320 Ohms | |
| Operating Temperature | -70°C ~ 125°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BR246D-320B1-28V-020M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BR246D-320B1-28V-020M is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of BR246D-320B1-28V-020M is new and unused, you can buy BR246D-320B1-28V-020M Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BR246D-320B1-28V-020M.
