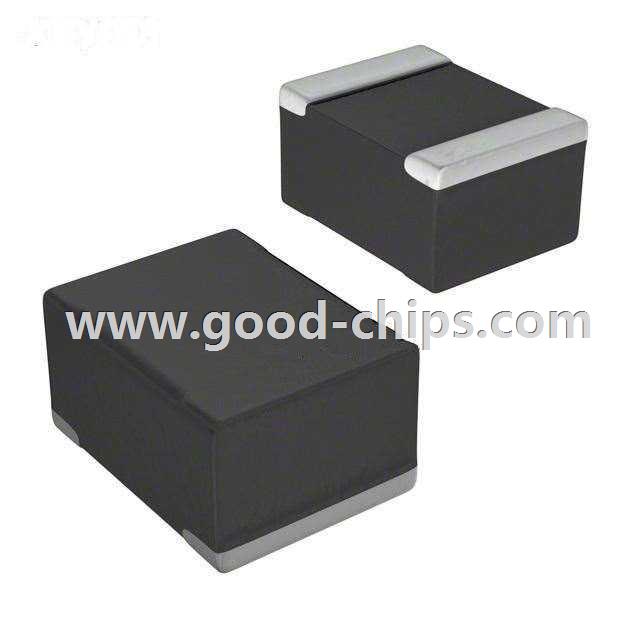

| Manufacturer Part Number: | BRL3225TR36M |
|---|---|
| Manufacturer: | Taiyo Yuden |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 360nH Unshielded Wirewound Inductor 2.75A 32.5 mOhm Max 1210 (3225 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BRL3225TR36M Datasheet |
| Internal Part Number | 898-BRL3225TR36M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | BR Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Taiyo Yuden | |
| Series | BR | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | - | |
| Inductance | 360nH | |
| Tolerance | ±20% | |
| Current Rating | 2.75A | |
| Current - Saturation | 4.3A | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 32.5 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | 350MHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Frequency - Test | 7.96MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 1210 (3225 Metric) | |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
| Height - Seated (Max) | 0.067" (1.70mm) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BRL3225TR36M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BRL3225TR36M is in stock for immediate shipping now. We are the distributor of Taiyo Yuden all series components. The condition of BRL3225TR36M is new and unused, you can buy BRL3225TR36M Taiyo Yuden with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BRL3225TR36M.
