Manufacturer Part Number: | BSC150N03LD G |
---|---|
Manufacturer: | Infineon Technologies |
Product Category: | Transistors - FETs, MOSFETs - Arrays |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET 2N-CH 30V 8A 8TDSON |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | BSC150N03LD G Datasheet |
Internal Part Number | 898-BSC150N03LD G | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | N-Channel Logic Level Gate FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Arrays | |
Manufacturer | Infineon Technologies | |
Series | OptiMOS™ | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
FET Type | 2 N-Channel (Dual) | |
FET Feature | Logic Level Gate | |
Drain to Source Voltage (Vdss) | 30V | |
Current - Continuous Drain (Id) @ 25°C | 8A | |
Rds On (Max) @ Id, Vgs | 15 mOhm @ 20A, 10V | |
Vgs(th) (Max) @ Id | 2.2V @ 250µA | |
Gate Charge (Qg) @ Vgs | 13.2nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 1100pF @ 15V | |
Power - Max | 26W | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

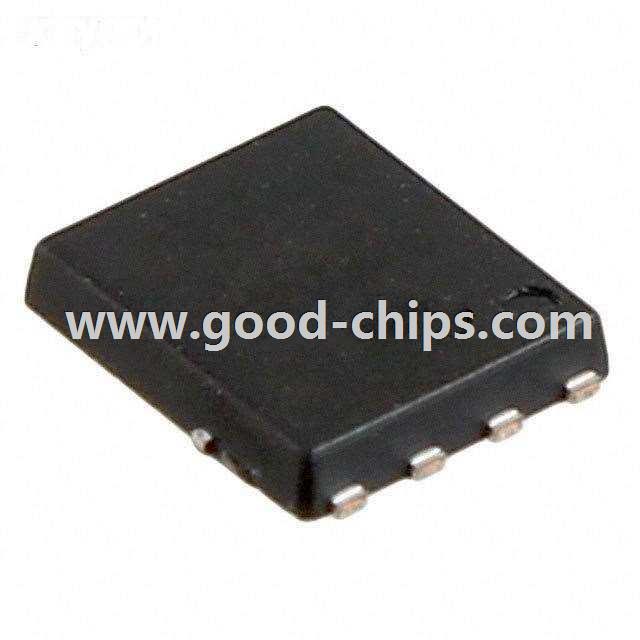

Package / Case | 8-PowerVDFN | |
Supplier Device Package | PG-TDSON-8 (5.15x6.15) | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | BSC150N03LD G | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
BSC150N03LD G is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of BSC150N03LD G is new and unused, you can buy BSC150N03LD G Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BSC150N03LD G.
