| Manufacturer Part Number: | BXRC-50C10K0-L-24 |
|---|---|
| Manufacturer: | Bridgelux |
| Product Category: | LED Lighting - COBs, Engines, Modules |
| Available Quantity: | 10645 Pieces |
| Unit Price: | Quote by Email |

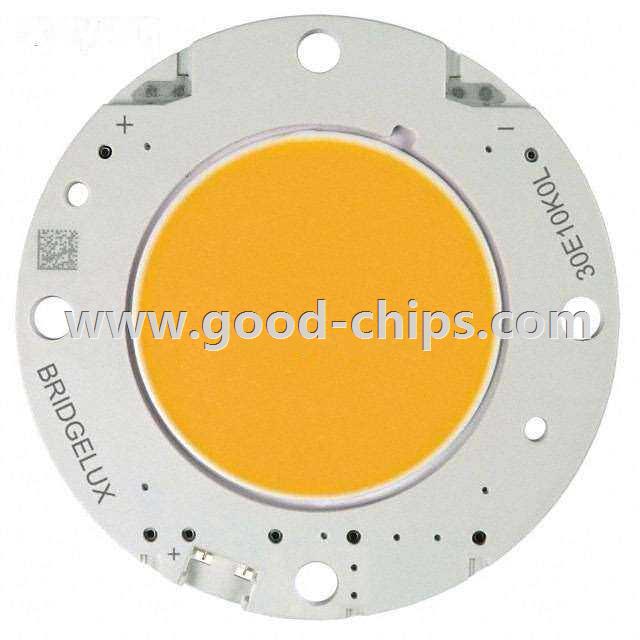

| Description: | LED Lighting COBs, Engines, Modules Chip On Board (COB) Vero® 29 Array White, Cool Round |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BXRC-50C10K0-L-24 Datasheet |
| Internal Part Number | 898-BXRC-50C10K0-L-24 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Vero™ Thermal Management Vero™ Handling and Assembly Vero™ Electrical Drive Considerations Vero™ Optical Considerations | |
| Design Resources | Lighting Product Selector | |
| Featured Product | VERO Series | |
| 3D Model | Vero™ 29.stp Vero™ 29.igs | |
| Online Catalog | Vero™ 29 Array Series | |
| Category | Optoelectronics | |
| Family | LED Lighting - COBs, Engines, Modules | |
| Manufacturer | Bridgelux | |
| Series | Vero® 29 Array | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Chip On Board (COB) | |
| Color | White, Cool | |
| CCT (K) | 5000K 4-Step MacAdam Ellipse | |
| Wavelength | - | |
| Configuration | Round | |
| Flux @ Current/Temperature - Test | 10032 lm (Typ) | |
| Current - Test | 2.1A | |
| Temperature - Test | 85°C | |
| Voltage - Forward (Vf) (Typ) | 36.8V | |
| Lumens/Watt @ Current - Test | 130 lm/W | |
| Current - Max | 4.2A | |
| CRI (Color Rendering Index) | 70 | |
| Viewing Angle | 120° | |
| Features | With Connector | |
| Size / Dimension | 49.20mm Diameter | |
| Height | 1.90mm | |
| Light Emitting Surface (LES) | 29.20mm Diameter | |
| Lens Type | Flat | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BXRC-50C10K0-L-24 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BXRC-50C10K0-L-24 is in stock for immediate shipping now. We are the distributor of Bridgelux all series components. The condition of BXRC-50C10K0-L-24 is new and unused, you can buy BXRC-50C10K0-L-24 Bridgelux with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BXRC-50C10K0-L-24.
