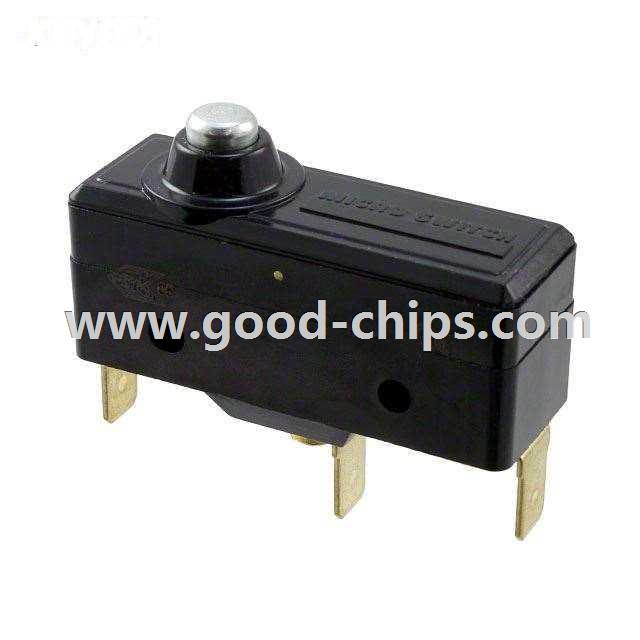

BZ-2RD-D6

BZ-2RD-D6
Manufacturer Part Number:BZ-2RD-D6
Manufacturer:
Product Category:Snap Action, Limit Switches
Available Quantity:9021 Pieces
Unit Price:Quote by Email
Description:SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: BZ-2RD-D6 Datasheet
BZ-2RD-D6´s Parameters
Internal Part Number898-BZ-2RD-D6
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog MICRO SWITCH™ BZ Series
CategorySwitches
FamilySnap Action, Limit Switches
ManufacturerHoneywell Sensing and Productivity Solutions
SeriesBZ
PackagingBulk
Part StatusActive
CircuitSPDT
Switch FunctionOn-Mom
Current Rating15A (AC), 500mA (DC)
Voltage Rating - AC125V
Voltage Rating - DC125V
Actuator TypeRound (Pin Plunger)
Mounting TypeChassis Mount
Termination StyleQuick Connect - 0.250" (6.3mm)
Ingress Protection-
FeaturesSteel Plunger
Operating Force, Torque255 ~ 368gf
Release Force113gf
Pretravel0.015" (0.4mm)
Differential Travel0.002" (0.05mm)
Overtravel0.060" (1.5mm)
Operating Position0.835" (21.2mm)
Mechanical Life20,000,000 Cycles
Electrical Life-
Operating Temperature-55°C ~ 85°C
Standard Package 5
Weight0.001 KG
ApplicationEmail for details
Replacement PartBZ-2RD-D6
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

BZ-2RD-D6 is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of BZ-2RD-D6 is new and unused, you can buy BZ-2RD-D6 Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for BZ-2RD-D6.
