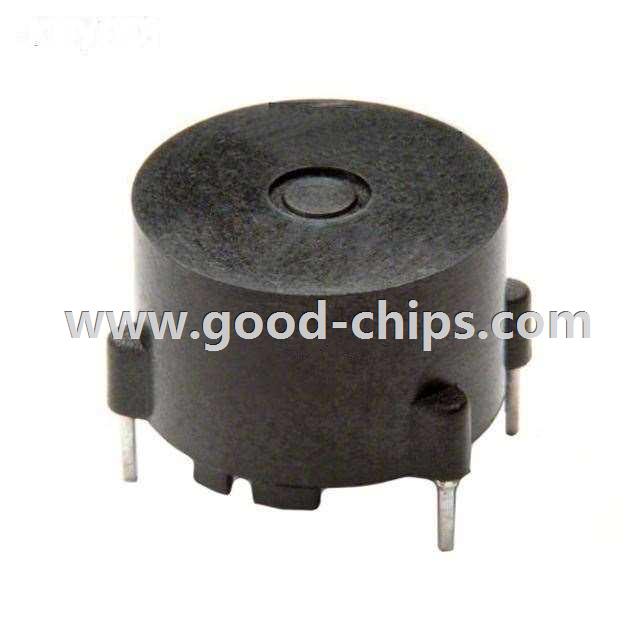

Manufacturer Part Number: | CAF-0.5-68 |
---|---|
Manufacturer: | Amgis, LLC |
Product Category: | Common Mode Chokes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 68mH @ 10kHz 2 Line Common Mode Choke Through Hole 500mA DCR 1.853 Ohm (Typ) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CAF-0.5-68 Datasheet |
Internal Part Number | 898-CAF-0.5-68 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Filters | |
Family | Common Mode Chokes | |
Manufacturer | Amgis, LLC | |
Series | CA | |
Packaging | Tray | |
Part Status | Active | |
Filter Type | Power Line | |
Number of Lines | 2 | |
Impedance @ Frequency | - | |
Inductance @ Frequency | 68mH @ 10kHz | |
Current Rating (Max) | 500mA | |
DC Resistance (DCR) (Max) | 1.853 Ohm (Typ) | |
Voltage Rating - DC | - | |
Voltage Rating - AC | - | |
Operating Temperature | -40°C ~ 125°C | |
Ratings | - | |
Approvals | - | |
Features | - | |
Mounting Type | Through Hole | |
Size / Dimension | 0.886" L x 0.866" W (22.50mm x 22.00mm) | |
Height (Max) | 0.591" (15.00mm) | |
Package / Case | Horizontal, 4 PC Pin | |
Standard Package | 150 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CAF-0.5-68 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CAF-0.5-68 is in stock for immediate shipping now. We are the distributor of Amgis, LLC all series components. The condition of CAF-0.5-68 is new and unused, you can buy CAF-0.5-68 Amgis, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CAF-0.5-68.
