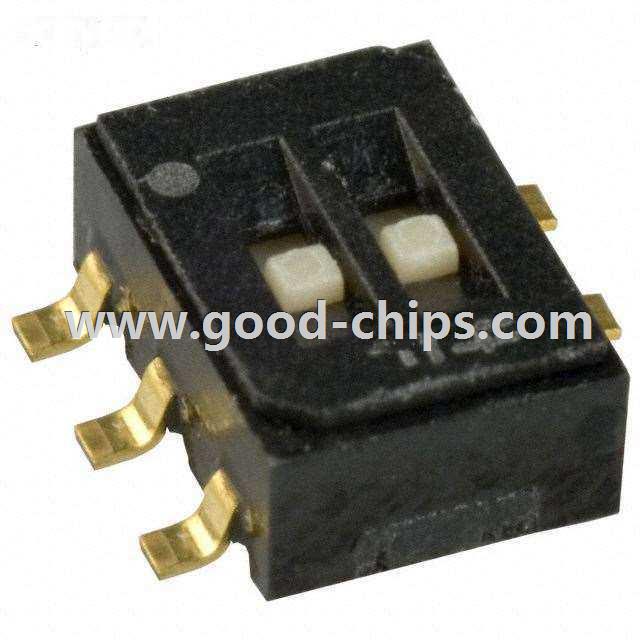

| Manufacturer Part Number: | CAS-D20TB |
|---|---|
| Manufacturer: | Copal Electronics Inc. |
| Product Category: | DIP Switches |
| Available Quantity: | 26010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Dip Switch SPDT x 2 2 Position Surface Mount Slide (Standard) Actuator 100mA 6VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CAS-D20TB Datasheet |
| Internal Part Number | 898-CAS-D20TB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | CJS & CAS Slide Switches 3D CAD Models | |
| Featured Product | CJS and CAS Series Surface-Mount Slide Switches | |
| 3D Model | CAS-D20TB | |
| Online Catalog | CAS Series | |
| Category | Switches | |
| Family | DIP Switches | |
| Manufacturer | Copal Electronics Inc. | |
| Series | CAS | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Circuit | SPDT x 2 | |
| Number of Positions | 2 | |
| Current Rating | 100mA | |
| Voltage Rating | 6VDC | |
| Actuator Type | Slide (Standard) | |
| Actuator Level | Flush, Recessed | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Height Above Board | 0.098" (2.50mm) | |
| Mounting Type | Surface Mount | |
| Termination Style | Gull Wing | |
| Pitch | 0.068" (1.75mm) | |
| Washable | Yes | |
| Features | Tape Seal | |
| Body Material | Polyphenylene Sulfide (PPS) | |
| Length | 0.212" (5.40mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Mechanical Life | - | |
| Electrical Life | 2,000 Cycles | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CAS-D20TB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CAS-D20TB is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of CAS-D20TB is new and unused, you can buy CAS-D20TB Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CAS-D20TB.
