Manufacturer Part Number: | CBT-40-G-C21-JD201 |
---|---|
Manufacturer: | Luminus Devices Inc. |
Product Category: | LED Lighting - COBs, Engines, Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

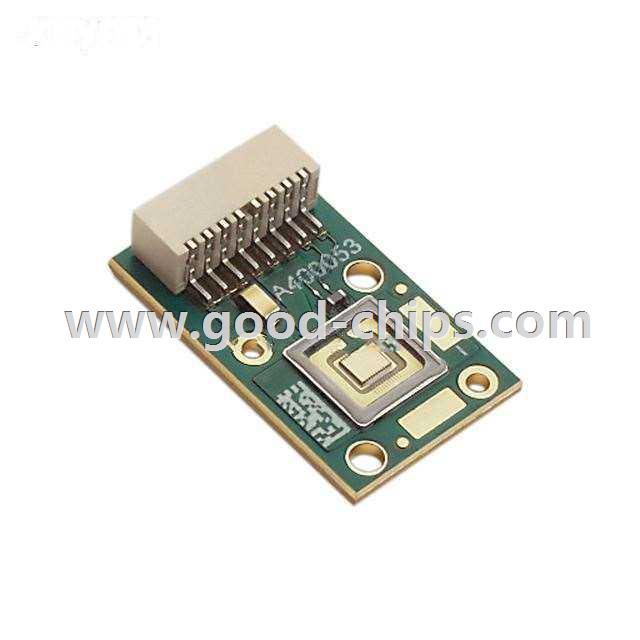

Description: | LED Lighting COBs, Engines, Modules LED Module CBT-40 Green Rectangle |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CBT-40-G-C21-JD201 Datasheet |
Internal Part Number | 898-CBT-40-G-C21-JD201 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Lighting Product Selector | |
PCN Obsolescence/ EOL | CBT-40 Families 25/Jul/2013 | |
Category | Optoelectronics | |
Family | LED Lighting - COBs, Engines, Modules | |
Manufacturer | Luminus Devices Inc. | |
Series | CBT-40 | |
Packaging | - | |
Part Status | Obsolete | |
Type | LED Module | |
Color | Green | |
CCT (K) | - | |
Wavelength | 530nm (520nm ~ 540nm) | |
Configuration | Rectangle | |
Flux @ Current/Temperature - Test | 650 lm (Typ) | |
Current - Test | 5.9A | |
Temperature - Test | 40°C | |
Voltage - Forward (Vf) (Typ) | 4.5V | |
Lumens/Watt @ Current - Test | 24 lm/W | |
Current - Max | 12A | |
CRI (Color Rendering Index) | - | |
Viewing Angle | - | |
Features | With Connector | |
Size / Dimension | 26.50mm L x 16.00mm W | |
Height | 6.30mm | |
Light Emitting Surface (LES) | 1.87mm L x 2.09mm W | |
Lens Type | Flat | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CBT-40-G-C21-JD201 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CBT-40-G-C21-JD201 is in stock for immediate shipping now. We are the distributor of Luminus Devices Inc. all series components. The condition of CBT-40-G-C21-JD201 is new and unused, you can buy CBT-40-G-C21-JD201 Luminus Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CBT-40-G-C21-JD201.
