Manufacturer Part Number: | CC1111F8RSPR |
---|---|
Manufacturer: | Texas Instruments |
Product Category: | RF Transceiver ICs |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | IC RF TxRx + MCU General ISM < 1GHz 300MHz ~ 348MHz, 391MHz ~ 464MHz, 782MHz ~ 928MHz 36-VFQFN Exposed Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CC1111F8RSPR Datasheet |
Internal Part Number | 898-CC1111F8RSPR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector IoT Product Selector | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | RF/IF and RFID | |
Family | RF Transceiver ICs | |
Manufacturer | Texas Instruments | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Type | TxRx + MCU | |
RF Family/Standard | General ISM < 1GHz | |
Protocol | - | |
Modulation | 2FSK, ASK, GFSK, MSK, OOK | |
Frequency | 300MHz ~ 348MHz, 391MHz ~ 464MHz, 782MHz ~ 928MHz | |
Data Rate (Max) | 500kBaud | |
Power - Output | 10dBm | |
Sensitivity | -112dBm | |
Memory Size | 8kB Flash, 1kB SRAM | |
Serial Interfaces | I²S, USART, USB | |
GPIO | 19 | |
Voltage - Supply | 3 V ~ 3.6 V | |
Current - Receiving | 16.2mA ~ 21.5mA | |
Current - Transmitting | 18mA ~ 36.2mA | |
Operating Temperature | 0°C ~ 85°C | |

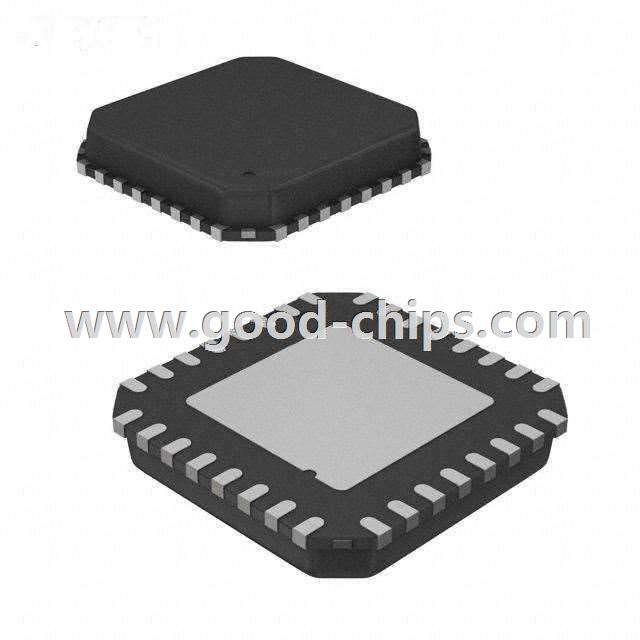

Package / Case | 36-VFQFN Exposed Pad | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CC1111F8RSPR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CC1111F8RSPR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of CC1111F8RSPR is new and unused, you can buy CC1111F8RSPR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CC1111F8RSPR.
