Manufacturer Part Number: | CDK5581 |
---|---|
Manufacturer: | Cirrus Logic Inc. |
Product Category: | Evaluation Boards - Analog to Digital Converters (ADCs) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

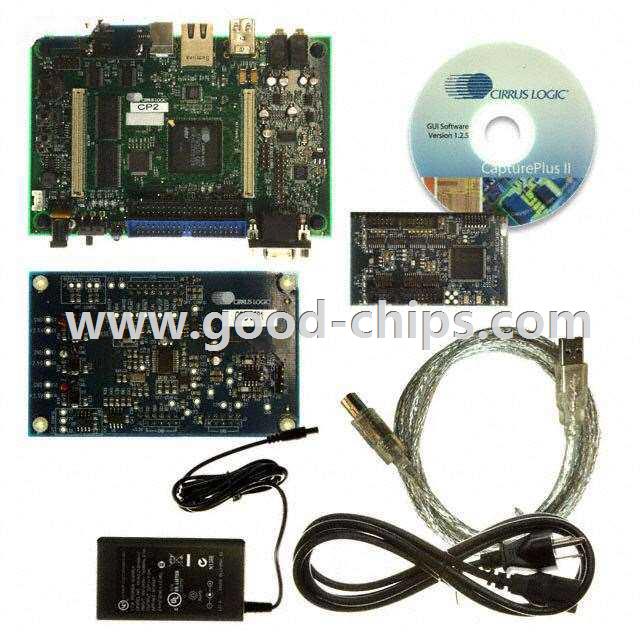

Description: | CS5581 CapturePLUS™II 16 Bit 200k Samples per Second Analog to Digital Converter (ADC) Evaluation Board |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CDK5581 Datasheet |
Internal Part Number | 898-CDK5581 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
PCN Obsolescence/ EOL | Multiple Devices 26/May/2015 | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Analog to Digital Converters (ADCs) | |
Manufacturer | Cirrus Logic Inc. | |
Series | CapturePLUS™II | |
Part Status | Obsolete | |
Number of A/D Converters | 1 | |
Number of Bits | 16 | |
Sampling Rate (Per Second) | 200k | |
Data Interface | Serial | |
Input Range | ±2.048 V | |
Power (Typ) @ Conditions | 85mW @ 200kSPS | |
Utilized IC / Part | CS5581 | |
Supplied Contents | 2 Boards, Cables, Power Supply | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CDK5581 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CDK5581 is in stock for immediate shipping now. We are the distributor of Cirrus Logic Inc. all series components. The condition of CDK5581 is new and unused, you can buy CDK5581 Cirrus Logic Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDK5581.
