Manufacturer Part Number: | CDLL4614 |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Diodes - Zener - Single |
Available Quantity: | 9246 Pieces |
Unit Price: | Quote by Email |

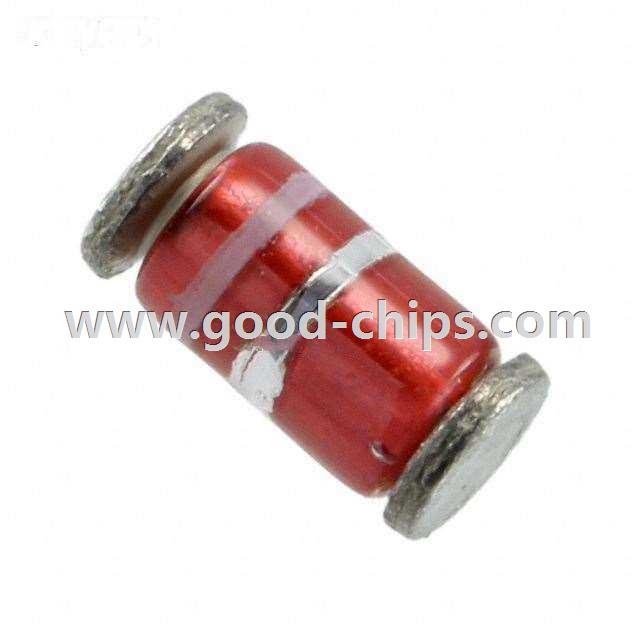

Description: | Zener Diode 1.8V 500mW ±5% Surface Mount DO-213AA |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CDLL4614 Datasheet |
Internal Part Number | 898-CDLL4614 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | Glass Zener Diodes - Military, MIL-PRF | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Zener - Single | |
Manufacturer | Microsemi Corporation | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Voltage - Zener (Nom) (Vz) | 1.8V | |
Tolerance | ±5% | |
Power - Max | 500mW | |
Impedance (Max) (Zzt) | 1200 Ohm | |
Current - Reverse Leakage @ Vr | 3.5µA @ 1V | |
Voltage - Forward (Vf) (Max) @ If | 1.1V @ 200mA | |
Operating Temperature | -65°C ~ 175°C | |
Mounting Type | Surface Mount | |
Package / Case | DO-213AA | |
Supplier Device Package | DO-213AA | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CDLL4614 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CDLL4614 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of CDLL4614 is new and unused, you can buy CDLL4614 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDLL4614.
