| Manufacturer Part Number: | CF-LA-1AL-1C |
|---|---|
| Manufacturer: | Copal Electronics Inc. |
| Product Category: | Rocker Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

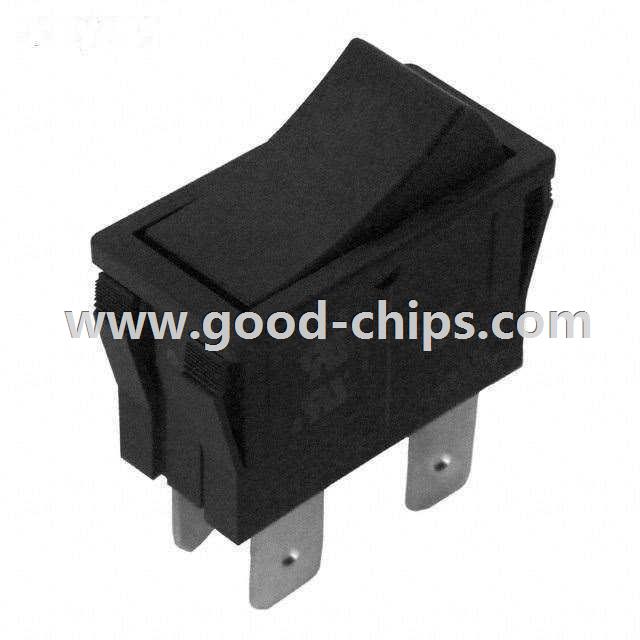

| Description: | Rocker Switch SPST 16A (AC) 125V Panel Mount, Snap-In |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CF-LA-1AL-1C Datasheet |
| Internal Part Number | 898-CF-LA-1AL-1C | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | CF-LA Rocker Switches 3D CAD Models | |
| Featured Product | CF-LA Series | |
| 3D Model | CF-LA-1AL-1C | |
| Online Catalog | CF-LA Series | |
| Category | Switches | |
| Family | Rocker Switches | |
| Manufacturer | Copal Electronics Inc. | |
| Series | CF-LA | |
| Packaging | Tray | |
| Part Status | Active | |
| Circuit | SPST | |
| Switch Function | On-Off | |
| Current Rating | 16A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Concave (Curved) | |
| Color - Actuator/Cap | Black | |
| Actuator Marking | No Marking | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount, Snap-In | |
| Termination Style | Solder Lug | |
| Ingress Protection | IP40 | |
| Features | In Rush 160A Max | |
| Panel Cutout Dimensions | Rectangular - 28.20mm x 12.90mm | |
| Operating Temperature | -25°C ~ 85°C | |
| Mechanical Life | - | |
| Electrical Life | 20,000 Cycles | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CF-LA-1AL-1C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CF-LA-1AL-1C is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of CF-LA-1AL-1C is new and unused, you can buy CF-LA-1AL-1C Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CF-LA-1AL-1C.
