Manufacturer Part Number: | CFPB-1CC-1G1W |
---|---|
Manufacturer: | Copal Electronics Inc. |
Product Category: | Pushbutton Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

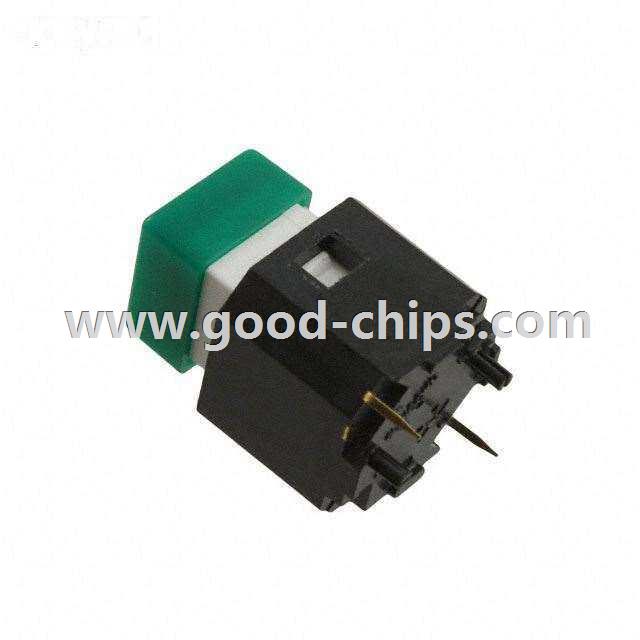

Description: | Pushbutton Switch SPST-NO Standard Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CFPB-1CC-1G1W Datasheet |
Internal Part Number | 898-CFPB-1CC-1G1W | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | CFPB Series Pushbutton Switch 3D CAD Models Pushbutton Switch | |
Featured Product | CFPB Series LED Pushbutton Switches | |
3D Model | CFPB-1CC-1G1W | |
Category | Switches | |
Family | Pushbutton Switches | |
Manufacturer | Copal Electronics Inc. | |
Series | CFPB | |
Packaging | Tray | |
Part Status | Active | |
Type | Standard | |
Circuit | SPST-NO | |
Switch Function | Off-Mom | |
Current Rating | 1mA (DC) | |
Voltage Rating - AC | - | |
Voltage Rating - DC | 20V | |
Actuator Type | Square, Button | |
Color - Actuator/Cap | Green | |
Illumination Type, Color | - | |
Illumination Voltage (Nominal) | - | |
Mounting Type | Through Hole | |
Termination Style | PC Pin | |
Ingress Protection | - | |
Features | - | |
Panel Cutout Dimensions | - | |
Operating Temperature | -10°C ~ 60°C | |
Mechanical Life | - | |
Electrical Life | 500,000 Cycles | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CFPB-1CC-1G1W | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CFPB-1CC-1G1W is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of CFPB-1CC-1G1W is new and unused, you can buy CFPB-1CC-1G1W Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CFPB-1CC-1G1W.
