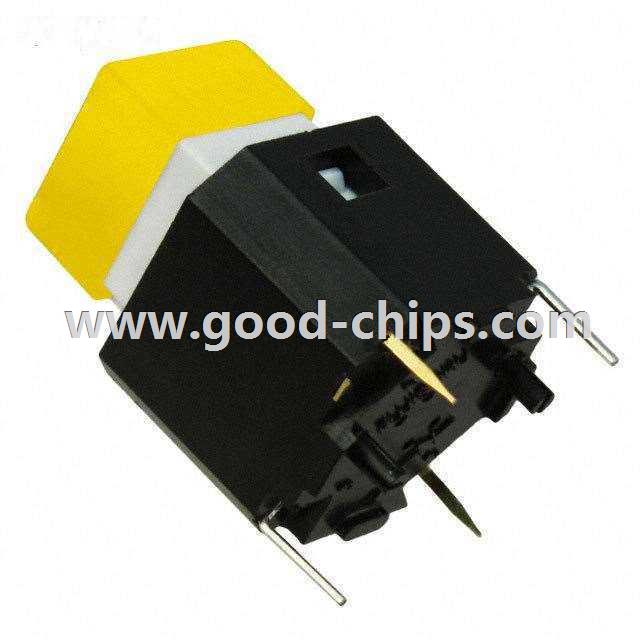

| Manufacturer Part Number: | CFPB-1CC-5Y2W |
|---|---|
| Manufacturer: | Copal Electronics Inc. |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pushbutton Switch SPST-NO Standard, Illuminated Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CFPB-1CC-5Y2W Datasheet |
| Internal Part Number | 898-CFPB-1CC-5Y2W | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | CFPB Series Pushbutton Switch 3D CAD Models Pushbutton Switch | |
| Featured Product | CFPB Series LED Pushbutton Switches | |
| 3D Model | CFPB-1CC-5Y2W | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | Copal Electronics Inc. | |
| Series | CFPB | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Standard, Illuminated | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Current Rating | 1mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 20V | |
| Actuator Type | Square, Button | |
| Color - Actuator/Cap | Yellow | |
| Illumination Type, Color | LED, Green | |
| Illumination Voltage (Nominal) | 2.1 VDC | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Ingress Protection | - | |
| Features | - | |
| Panel Cutout Dimensions | - | |
| Operating Temperature | -10°C ~ 60°C | |
| Mechanical Life | - | |
| Electrical Life | 500,000 Cycles | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CFPB-1CC-5Y2W | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CFPB-1CC-5Y2W is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of CFPB-1CC-5Y2W is new and unused, you can buy CFPB-1CC-5Y2W Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CFPB-1CC-5Y2W.
