Manufacturer Part Number: | CLS-RR11A120250B |
---|---|
Manufacturer: | Lumex Opto/Components Inc. |
Product Category: | Rocker Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

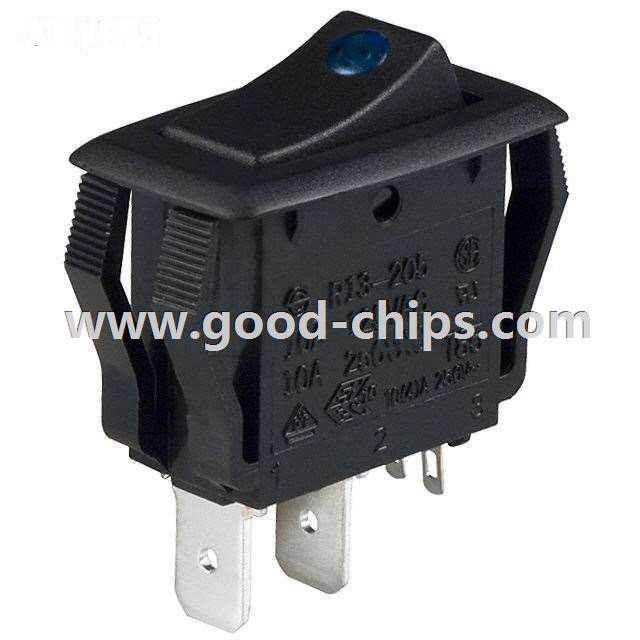

Description: | Rocker Switch SPST 16A (AC) 125V Panel Mount, Snap-In |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CLS-RR11A120250B Datasheet |
Internal Part Number | 898-CLS-RR11A120250B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | CLS Switch OBS 28/May/2010 | |
Category | Switches | |
Family | Rocker Switches | |
Manufacturer | Lumex Opto/Components Inc. | |
Series | CLS | |
Packaging | Bulk | |
Part Status | Obsolete | |
Circuit | SPST | |
Switch Function | On-Off | |
Current Rating | 16A (AC) | |
Voltage Rating - AC | 125V | |
Voltage Rating - DC | - | |
Actuator Type | Concave (Curved) - Illuminated | |
Color - Actuator/Cap | Black | |
Actuator Marking | No Marking | |
Illumination Type, Color | LED, Blue | |
Illumination Voltage (Nominal) | - | |
Mounting Type | Panel Mount, Snap-In | |
Termination Style | Quick Connect - 0.250" (6.3mm) | |
Ingress Protection | - | |
Features | - | |
Panel Cutout Dimensions | Rectangular - 27.80mm x 13.80mm | |
Operating Temperature | - | |
Mechanical Life | - | |
Electrical Life | - | |
Standard Package | 250 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CLS-RR11A120250B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CLS-RR11A120250B is in stock for immediate shipping now. We are the distributor of Lumex Opto/Components Inc. all series components. The condition of CLS-RR11A120250B is new and unused, you can buy CLS-RR11A120250B Lumex Opto/Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CLS-RR11A120250B.
