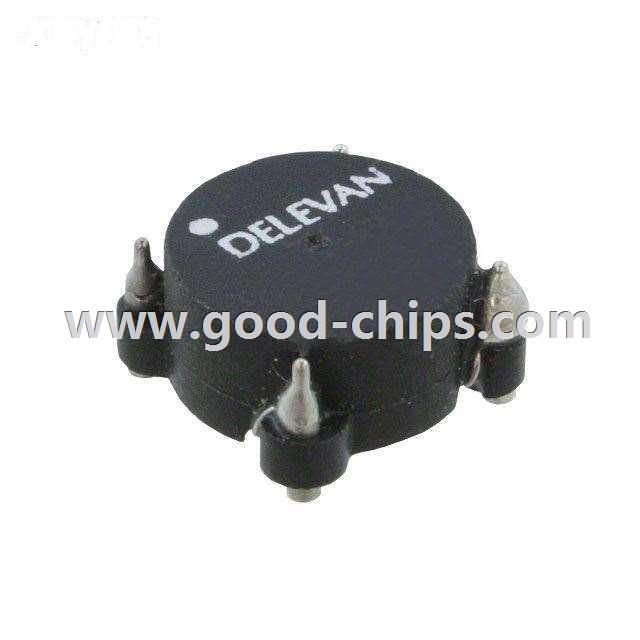

Manufacturer Part Number: | CM6350-334 |
---|---|
Manufacturer: | API Delevan Inc. |
Product Category: | Common Mode Chokes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 330µH @ 10kHz 2 Line Common Mode Choke Surface Mount 1.8A DCR 40 mOhm |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CM6350-334 Datasheet |
Internal Part Number | 898-CM6350-334 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Filters | |
Family | Common Mode Chokes | |
Manufacturer | API Delevan Inc. | |
Series | CM6350 | |
Packaging | Bulk | |
Part Status | Active | |
Filter Type | Power Line | |
Number of Lines | 2 | |
Impedance @ Frequency | - | |
Inductance @ Frequency | 330µH @ 10kHz | |
Current Rating (Max) | 1.8A | |
DC Resistance (DCR) (Max) | 40 mOhm | |
Voltage Rating - DC | - | |
Voltage Rating - AC | - | |
Operating Temperature | -55°C ~ 105°C | |
Ratings | - | |
Approvals | - | |
Features | - | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.360" L x 0.360" W (9.14mm x 9.14mm) | |
Height (Max) | 0.210" (5.33mm) | |
Package / Case | Horizontal, 4 PC Pad | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CM6350-334 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CM6350-334 is in stock for immediate shipping now. We are the distributor of API Delevan Inc. all series components. The condition of CM6350-334 is new and unused, you can buy CM6350-334 API Delevan Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CM6350-334.
