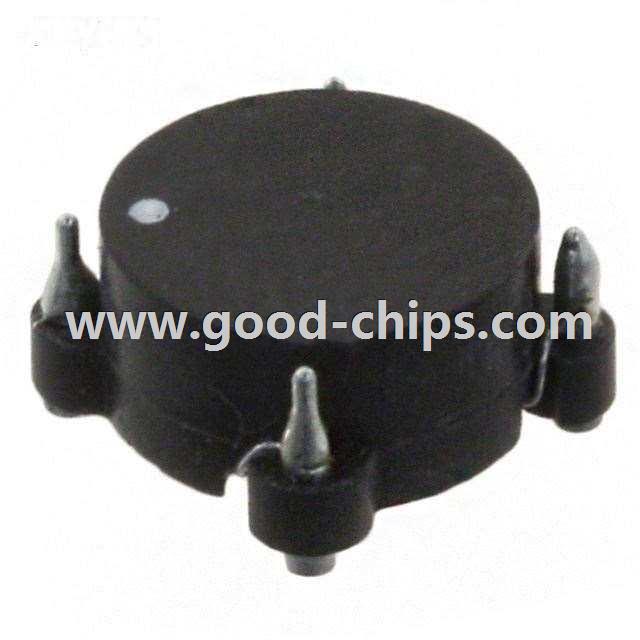

| Manufacturer Part Number: | CM6350R-225 |
|---|---|
| Manufacturer: | API Delevan Inc. |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2.2mH @ 10kHz 2 Line Common Mode Choke Surface Mount 600mA DCR 300 mOhm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CM6350R-225 Datasheet |
| Internal Part Number | 898-CM6350R-225 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | API Delevan Inc. | |
| Series | CM6350R | |
| Packaging | Bulk | |
| Part Status | Active | |
| Filter Type | Power Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | - | |
| Inductance @ Frequency | 2.2mH @ 10kHz | |
| Current Rating (Max) | 600mA | |
| DC Resistance (DCR) (Max) | 300 mOhm | |
| Voltage Rating - DC | - | |
| Voltage Rating - AC | - | |
| Operating Temperature | -55°C ~ 105°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.360" L x 0.360" W (9.14mm x 9.14mm) | |
| Height (Max) | 0.210" (5.33mm) | |
| Package / Case | Horizontal, 4 PC Pad | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CM6350R-225 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CM6350R-225 is in stock for immediate shipping now. We are the distributor of API Delevan Inc. all series components. The condition of CM6350R-225 is new and unused, you can buy CM6350R-225 API Delevan Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CM6350R-225.
