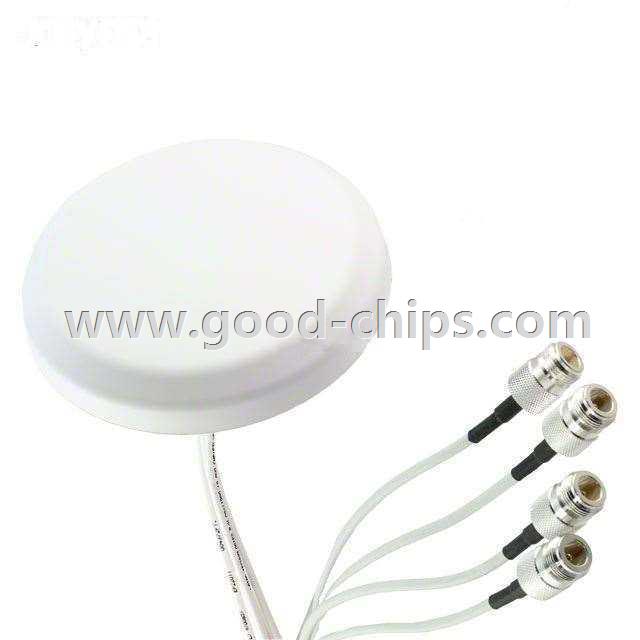

| Manufacturer Part Number: | CMQ23496-91NF |
|---|---|
| Manufacturer: | Laird Technologies IAS |
| Product Category: | RF Antennas |
| Available Quantity: | 9020 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2.5GHz, 5.4GHz WLAN Dome RF Antenna 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.95GHz 6.3dBi Connector, N Female Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CMQ23496-91NF Datasheet |
| Internal Part Number | 898-CMQ23496-91NF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Online Catalog | Laird Technologies - External | |
| Category | RF/IF and RFID | |
| Family | RF Antennas | |
| Manufacturer | Laird Technologies IAS | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) | |
| Frequency (Center/Band) | 2.5GHz, 5.4GHz | |
| Frequency Range | 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.95GHz | |
| Antenna Type | Dome | |
| Number of Bands | 2 | |
| VSWR | 1.8 | |
| Return Loss | - | |
| Gain | 6.3dBi | |
| Power - Max | 10W | |
| Features | - | |
| Termination | Connector, N Female | |
| Ingress Protection | - | |
| Mounting Type | Panel Mount | |
| Height (Max) | 1.260" (32.00mm) | |
| Applications | WLAN | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CMQ23496-91NF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CMQ23496-91NF is in stock for immediate shipping now. We are the distributor of Laird Technologies IAS all series components. The condition of CMQ23496-91NF is new and unused, you can buy CMQ23496-91NF Laird Technologies IAS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CMQ23496-91NF.
