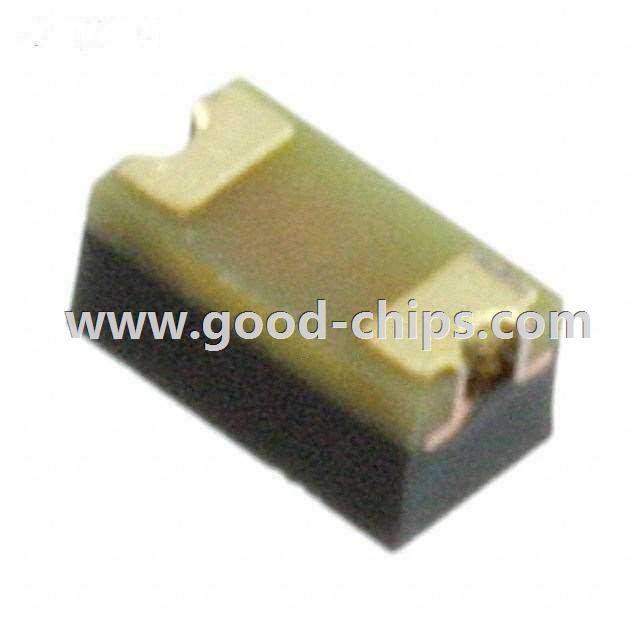

| Manufacturer Part Number: | CPDU5V0-HF |
|---|---|
| Manufacturer: | Comchip Technology |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 5VWM 15VC 0603 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CPDU5V0-HF Datasheet |
| Internal Part Number | 898-CPDU5V0-HF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Surge Protection Diodes Flat Chip Diodes ESD and ESD Suppressors | |
| RoHS Information | RoHS Declaration CPDU(R) HF Series Material Declaration | |
| PCN Packaging | Label D/C Chg24/Mar/2016 | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Comchip Technology | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 1 | |
| Voltage - Reverse Standoff (Typ) | 5V | |
| Voltage - Breakdown (Min) | 5.1V | |
| Voltage - Clamping (Max) @ Ipp | 15V | |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) | |
| Power - Peak Pulse | 75W | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | 15pF @ 1MHz | |
| Operating Temperature | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-SMD, No Lead | |
| Supplier Device Package | 0603/SOD-523F | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CPDU5V0-HF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CPDU5V0-HF is in stock for immediate shipping now. We are the distributor of Comchip Technology all series components. The condition of CPDU5V0-HF is new and unused, you can buy CPDU5V0-HF Comchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CPDU5V0-HF.
