Manufacturer Part Number: | CPL-WB-01C2 |
---|---|
Manufacturer: | STMicroelectronics |
Product Category: | RF Directional Coupler |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF Directional Coupler General Purpose 824MHz ~ 2.025GHz 34dB 6-WFBGA, FCBGA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CPL-WB-01C2 Datasheet |
Internal Part Number | 898-CPL-WB-01C2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | IoT Product Selector | |
Category | RF/IF and RFID | |
Family | RF Directional Coupler | |
Manufacturer | STMicroelectronics | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Coupler Type | Standard | |
Frequency | 824MHz ~ 2.025GHz | |
Coupling Factor | 34dB | |
Applications | General Purpose | |
Insertion Loss | 0.2dB | |
Power - Max | - | |
Isolation | - | |
Return Loss | 15dB | |

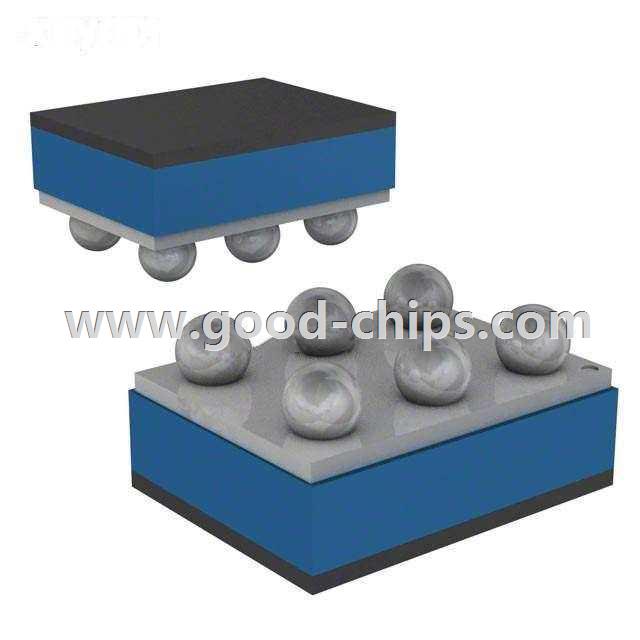

Package / Case | 6-WFBGA, FCBGA | |
Supplier Device Package | 6-FlipChip | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CPL-WB-01C2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CPL-WB-01C2 is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of CPL-WB-01C2 is new and unused, you can buy CPL-WB-01C2 STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CPL-WB-01C2.
