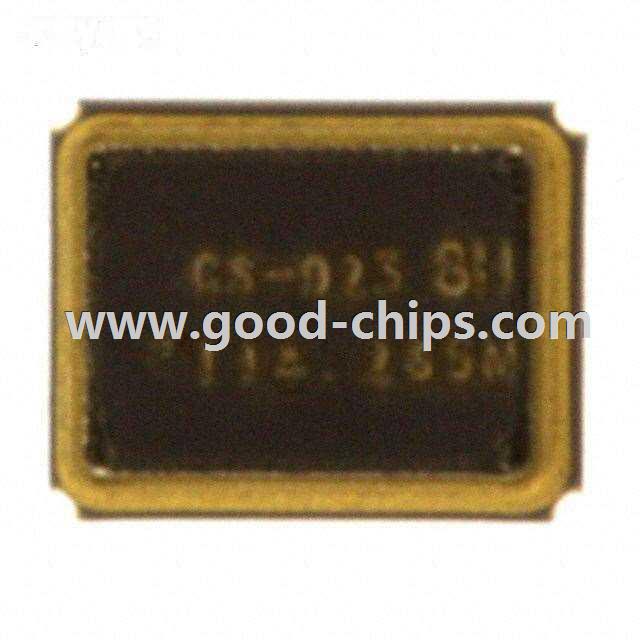

| Manufacturer Part Number: | CS-023-114.285M |
|---|---|
| Manufacturer: | Connor-Winfield |
| Product Category: | Crystals |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 114.285MHz ±20ppm Crystal 18pF 80 Ohm -40°C ~ 85°C Surface Mount 4-SMD, No Lead (DFN, LCC) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CS-023-114.285M Datasheet |
| Internal Part Number | 898-CS-023-114.285M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | CS-018-CS-023 Surface Mount Crystals | |
| Online Catalog | CS-018 and CS-023 Series | |
| Category | Crystals and Oscillators | |
| Family | Crystals | |
| Manufacturer | Connor-Winfield | |
| Series | CS-023 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | MHz Crystal | |
| Frequency | 114.285MHz | |
| Frequency Stability | ±20ppm | |
| Frequency Tolerance | ±20ppm | |
| Load Capacitance | 18pF | |
| ESR (Equivalent Series Resistance) | 80 Ohm | |
| Operating Mode | 3rd Overtone | |
| Operating Temperature | -40°C ~ 85°C | |
| Ratings | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD, No Lead (DFN, LCC) | |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
| Height | 0.031" (0.80mm) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CS-023-114.285M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CS-023-114.285M is in stock for immediate shipping now. We are the distributor of Connor-Winfield all series components. The condition of CS-023-114.285M is new and unused, you can buy CS-023-114.285M Connor-Winfield with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CS-023-114.285M.
