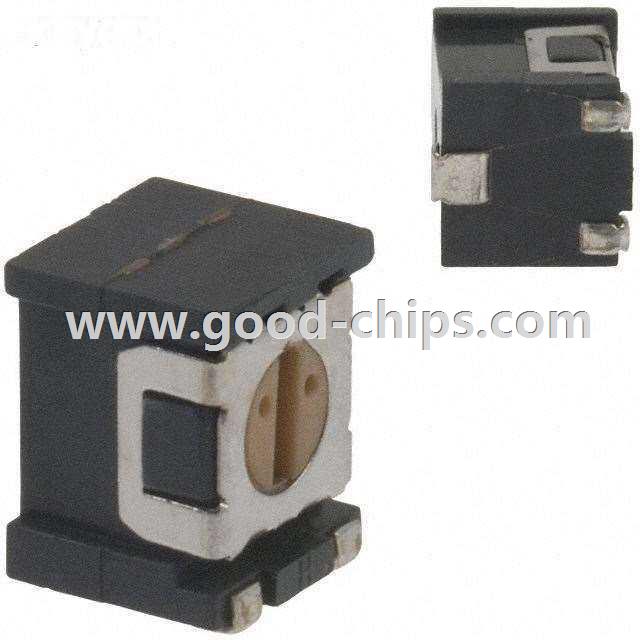

| Manufacturer Part Number: | CS-32-12ZETG |
|---|---|
| Manufacturer: | Copal Electronics Inc. |
| Product Category: | DIP Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Dip Switch SPDT 2 Position Surface Mount, Right Angle Rotary for Tool Actuator 100mA 16VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CS-32-12ZETG Datasheet |
| Internal Part Number | 898-CS-32-12ZETG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | 3D CAD Models | |
| 3D Model | CS-32-12ZETG | |
| Category | Switches | |
| Family | DIP Switches | |
| Manufacturer | Copal Electronics Inc. | |
| Series | CS-32 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Circuit | SPDT | |
| Number of Positions | 2 | |
| Current Rating | 100mA | |
| Voltage Rating | 16VDC | |
| Actuator Type | Rotary for Tool | |
| Actuator Level | Flush, Recessed | |
| Contact Material | - | |
| Contact Finish | - | |
| Height Above Board | 0.185" (4.70mm) | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination Style | J Lead | |
| Pitch | - | |
| Washable | Yes | |
| Features | - | |
| Body Material | Epoxy | |
| Length | 0.142" (3.60mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Mechanical Life | - | |
| Electrical Life | 50 Cycles | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CS-32-12ZETG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CS-32-12ZETG is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of CS-32-12ZETG is new and unused, you can buy CS-32-12ZETG Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CS-32-12ZETG.
