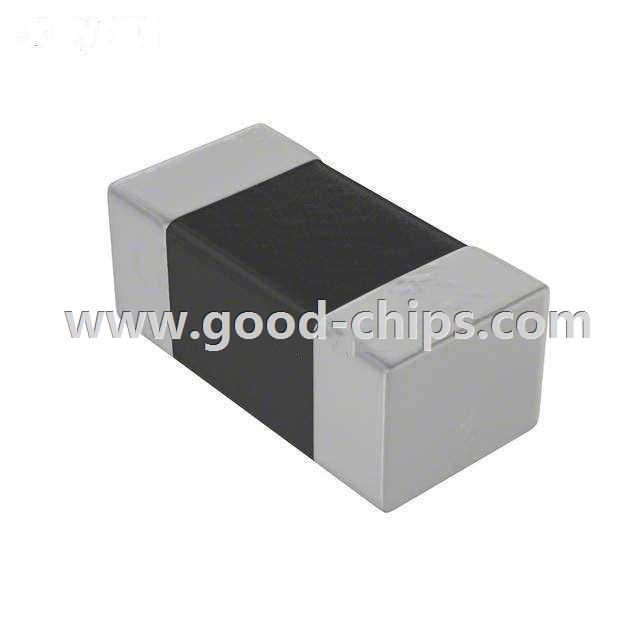

| Manufacturer Part Number: | CS321613-4R7K |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4.7µH Shielded Multilayer Inductor 50mA 800 mOhm Max 1206 (3216 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CS321613-4R7K Datasheet |
| Internal Part Number | 898-CS321613-4R7K | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | CS321613 Series Jun/2013 | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Bourns Inc. | |
| Series | CS321613 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Multilayer | |
| Material - Core | Ferrite | |
| Inductance | 4.7µH | |
| Tolerance | ±10% | |
| Current Rating | 50mA | |
| Current - Saturation | - | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 800 mOhm Max | |
| Q @ Freq | 85 @ 10MHz | |
| Frequency - Self Resonant | 35MHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 10MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 1206 (3216 Metric) | |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | |
| Height - Seated (Max) | 0.059" (1.50mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CS321613-4R7K | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CS321613-4R7K is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of CS321613-4R7K is new and unused, you can buy CS321613-4R7K Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CS321613-4R7K.
