| Manufacturer Part Number: | CS51413EMNR2G |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 1.27V 1 Output 1.5A 18-VFDFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CS51413EMNR2G Datasheet |
| Internal Part Number | 898-CS51413EMNR2G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 20/Jan/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 40V | |
| Voltage - Output (Min/Fixed) | 1.27V | |
| Voltage - Output (Max) | 38V | |
| Current - Output | 1.5A | |
| Frequency - Switching | 520kHz | |
| Synchronous Rectifier | No | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

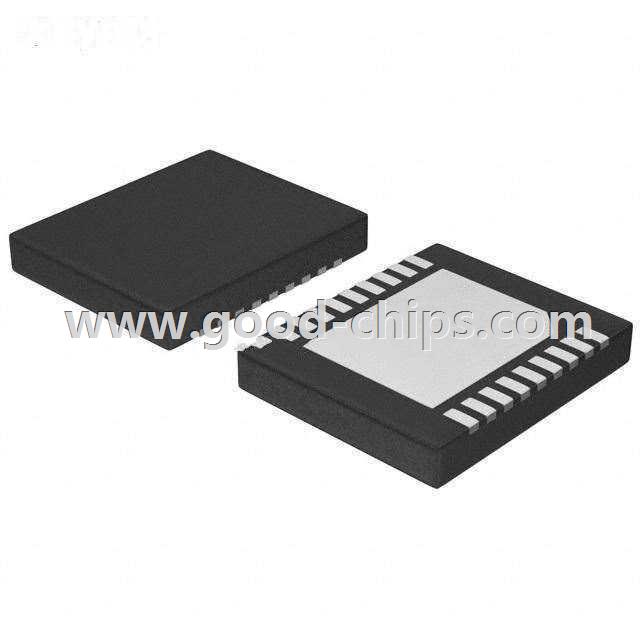

| Package / Case | 18-VFDFN Exposed Pad | |
| Supplier Device Package | 18-DFN (5x6) | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CS51413EMNR2G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CS51413EMNR2G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of CS51413EMNR2G is new and unused, you can buy CS51413EMNR2G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CS51413EMNR2G.
