| Manufacturer Part Number: | CS8156YT5 |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - Voltage Regulators - Linear |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Linear Voltage Regulator IC Positive Fixed 2 Output 12V, 5V 750mA, 100mA TO-220-5 |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CS8156YT5 Datasheet |
| Internal Part Number | 898-CS8156YT5 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 03/Apr/2007 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Linear | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Regulator Topology | Positive Fixed | |
| Voltage - Output | 12V, 5V | |
| Current - Output | 750mA, 100mA | |
| Voltage - Dropout (Typical) | 0.6V @ 750mA, - | |
| Number of Regulators | 2 | |
| Voltage - Input | 6 V ~ 26 V | |
| Current - Limit (Min) | 750mA, 100mA | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Through Hole | |

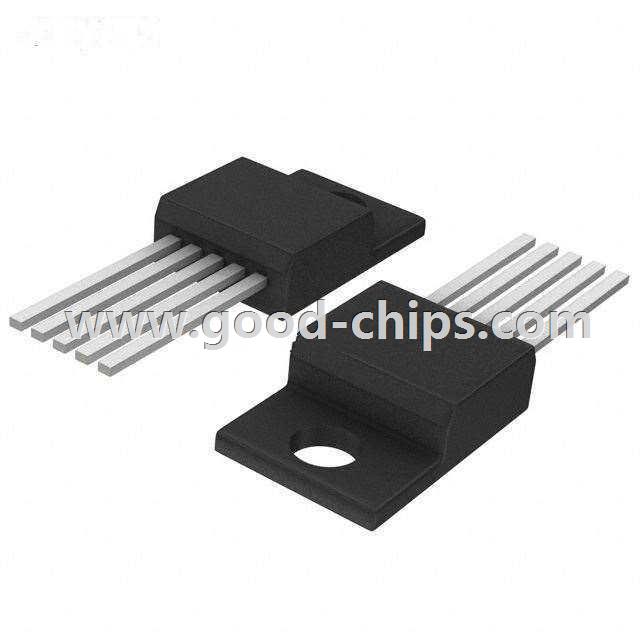

| Package / Case | TO-220-5 | |
| Supplier Device Package | TO-220-5 | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CS8156YT5 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CS8156YT5 is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of CS8156YT5 is new and unused, you can buy CS8156YT5 ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CS8156YT5.
