| Manufacturer Part Number: | CSD25481F4 |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 10395 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET P-CH 20V 2.5A 3PICOSTAR |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CSD25481F4 Datasheet |
| Internal Part Number | 898-CSD25481F4 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | DSBGA/uSIP 22/Jun/2016 | |
| PCN Assembly/Origin | Assembly/Test Site Transfer 19/Dec/2014 | |
| Manufacturer Product Page | CSD25481F4 Specifications | |
| Online Catalog | P-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Texas Instruments | |
| Series | NexFET™ | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| FET Type | MOSFET P-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 2.5A (Ta) | |
| Rds On (Max) @ Id, Vgs | 88 mOhm @ 500mA, 8V | |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 0.913nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 189pF @ 10V | |
| Power - Max | 500mW | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

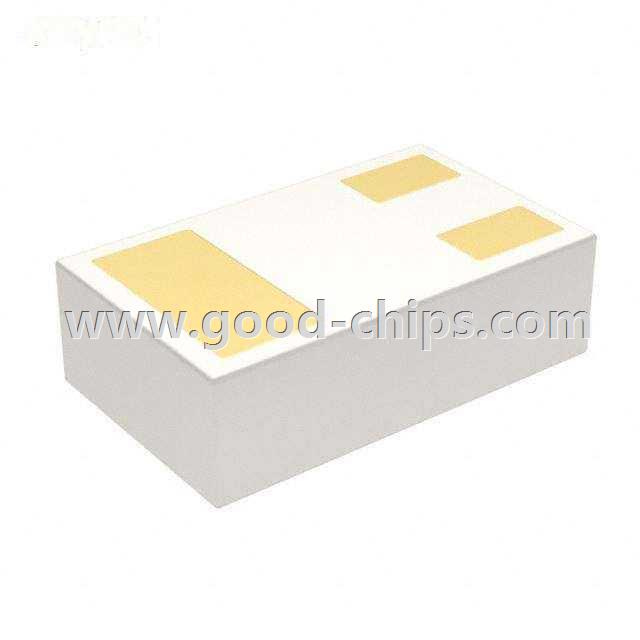

| Package / Case | 3-XFDFN | |
| Supplier Device Package | 3-PICOSTAR | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CSD25481F4 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CSD25481F4 is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of CSD25481F4 is new and unused, you can buy CSD25481F4 Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CSD25481F4.
