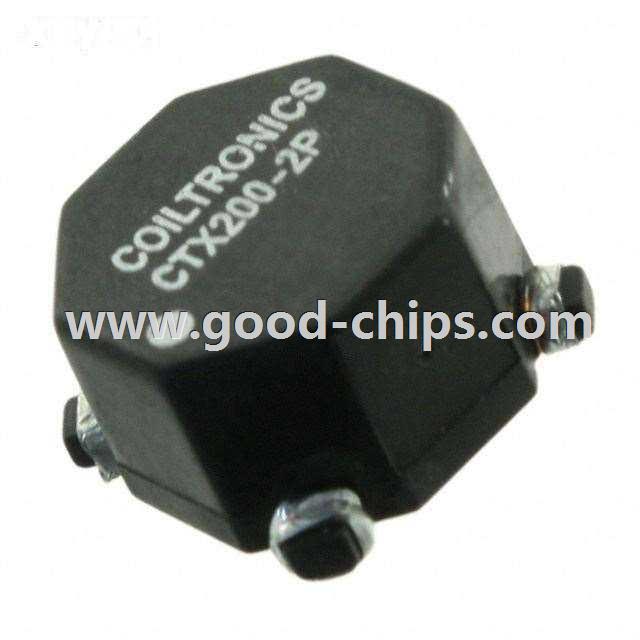

Manufacturer Part Number: | CTX200-2P-R |
---|---|
Manufacturer: | Eaton |
Product Category: | Arrays, Signal Transformers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Unshielded 2 Coil Inductor Array 806.34µH Inductance - Connected in Series 201.59µH Inductance - Connected in Parallel 951 mOhm Max DC Resistance (DCR) - Parallel 460mA Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CTX200-2P-R Datasheet |
Internal Part Number | 898-CTX200-2P-R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Assembly/Origin | Multiple Devices 31/Aug/2013 Coiltronics Magnetics Facility 31/Aug/2013 | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | Econo-Pac™, OCTA-PAC®, OCTA-PAC® Plus Series | |
Category | Inductors, Coils, Chokes | |
Family | Arrays, Signal Transformers | |
Manufacturer | Eaton | |
Series | Econo-Pac™ | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Number of Coils | 2 | |
Inductance - Connected In Series | 806.34µH | |
Inductance - Connected In Parallel | 201.59µH | |
Tolerance | ±20% | |
Current Rating - Parallel | 460mA | |
Current Rating - Series | 230mA | |
Current Saturation - Parallel | - | |
Current Saturation - Series | - | |
DC Resistance (DCR) - Parallel | 951 mOhm Max | |
DC Resistance (DCR) - Series | 3.804 Ohm Max | |
Shielding | Unshielded | |
Operating Temperature | -40°C ~ 85°C | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) | |
Height | 0.235" (5.97mm) | |
Standard Package | 800 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CTX200-2P-R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CTX200-2P-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of CTX200-2P-R is new and unused, you can buy CTX200-2P-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CTX200-2P-R.
