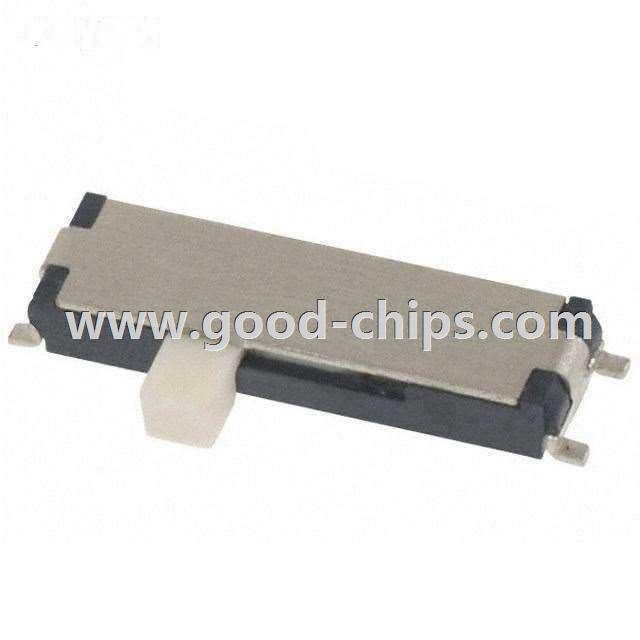

| Manufacturer Part Number: | CUS-13TB |
|---|---|
| Manufacturer: | Copal Electronics Inc. |
| Product Category: | Slide Switches |
| Available Quantity: | 11510 Pieces |
| Unit Price: | Quote by Email |
| Description: | Slide Switch SP3T Surface Mount, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CUS-13TB Datasheet |
| Internal Part Number | 898-CUS-13TB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | 3D CAD Models | |
| 3D Model | CUS-13TB | |
| Online Catalog | CUS Series | |
| Category | Switches | |
| Family | Slide Switches | |
| Manufacturer | Copal Electronics Inc. | |
| Series | CUS | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Circuit | SP3T | |
| Contact Timing | Non-Shorting (BBM) | |
| Switch Function | On-On-On | |
| Current Rating | 300mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 4V | |
| Actuator Type | Standard | |
| Actuator Length | 1.50mm | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination Style | Gull Wing | |
| Features | - | |
| Actuator Material | Polyamide (PA), Nylon | |
| Switch Travel | 1.50mm | |
| Operating Temperature | -20°C ~ 70°C | |
| Mechanical Life | - | |
| Electrical Life | 10,000 Cycles | |
| Operating Force | 153/204gf | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CUS-13TB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CUS-13TB is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of CUS-13TB is new and unused, you can buy CUS-13TB Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CUS-13TB.
