Manufacturer Part Number: | CUS-14TB |
---|---|
Manufacturer: | Copal Electronics Inc. |
Product Category: | Slide Switches |
Available Quantity: | 19010 Pieces |
Unit Price: | Quote by Email |

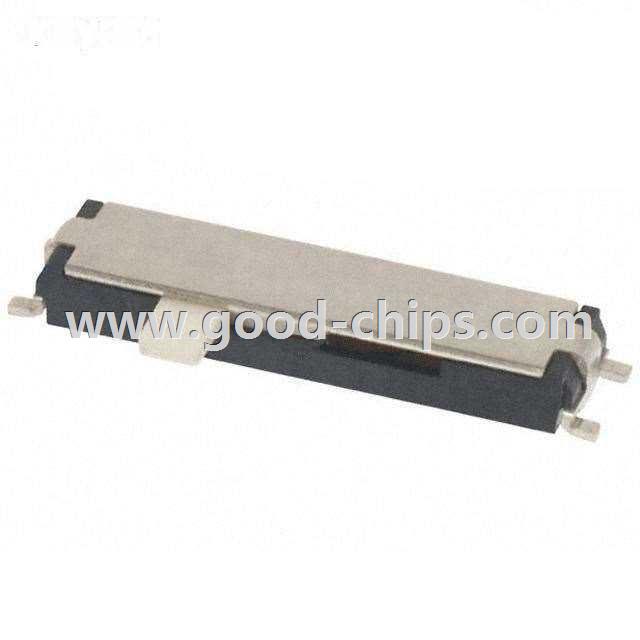

Description: | Slide Switch SP4T Surface Mount, Right Angle |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CUS-14TB Datasheet |
Internal Part Number | 898-CUS-14TB | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | 3D CAD Models | |
3D Model | CUS-14TB | |
Online Catalog | CUS Series | |
Category | Switches | |
Family | Slide Switches | |
Manufacturer | Copal Electronics Inc. | |
Series | CUS | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Circuit | SP4T | |
Contact Timing | Non-Shorting (BBM) | |
Switch Function | On-On-On-On | |
Current Rating | 300mA (DC) | |
Voltage Rating - AC | - | |
Voltage Rating - DC | 4V | |
Actuator Type | Standard | |
Actuator Length | 1.50mm | |
Contact Material | Copper Alloy | |
Contact Finish | Gold | |
Mounting Type | Surface Mount, Right Angle | |
Termination Style | Gull Wing | |
Features | - | |
Actuator Material | Polyamide (PA), Nylon | |
Switch Travel | 1.50mm | |
Operating Temperature | -20°C ~ 70°C | |
Mechanical Life | - | |
Electrical Life | 10,000 Cycles | |
Operating Force | 153/204gf | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CUS-14TB | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CUS-14TB is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of CUS-14TB is new and unused, you can buy CUS-14TB Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CUS-14TB.
