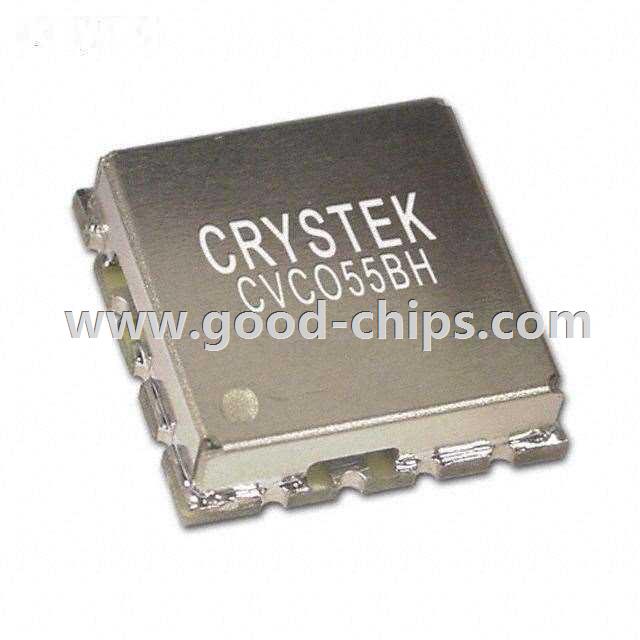

| Manufacturer Part Number: | CVCO55BH-4100-4300 |
|---|---|
| Manufacturer: | Crystek Corporation |
| Product Category: | VCOs (Voltage Controlled Oscillators) |
| Available Quantity: | 9024 Pieces |
| Unit Price: | Quote by Email |
| Description: | Center Frequency 4200MHz Voltage Controlled Oscillator 0.5 ~ 4.5 V 2 ±2 dBm -15 dBc |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CVCO55BH-4100-4300 Datasheet |
| Internal Part Number | 898-CVCO55BH-4100-4300 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Voltage Controlled Oscillators (VCO) Selection Techniques Overview | |
| RoHS Information | CVCO55 Certificate of Compliance | |
| Featured Product | Voltage Controlled Oscillators | |
| Online Catalog | CVCO55(BH) Series | |
| Category | Crystals and Oscillators | |
| Family | VCOs (Voltage Controlled Oscillators) | |
| Manufacturer | Crystek Corporation | |
| Series | CVCO55 | |
| Packaging | Cut Strip | |
| Part Status | Active | |
| Frequency Range | 4100 ~ 4300MHz | |
| Frequency - Center | 4200MHz | |
| Tuning Voltage (VDC) | 0.5 ~ 4.5 V | |
| 2nd Harmonic, Typ (dBc) | -15 | |
| Icc Max | 15mA | |
| Kvco (MHz/V) | 6 | |
| Power (dBm) | 2 ±2 | |
| Phase Noise Typ (dBc/Hz) | -84 | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | 16-QFN, Variant | |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) | |
| Height | 0.150" (3.81mm) | |
| Voltage - Supply | 5V | |
| Standard Package | 5 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CVCO55BH-4100-4300 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CVCO55BH-4100-4300 is in stock for immediate shipping now. We are the distributor of Crystek Corporation all series components. The condition of CVCO55BH-4100-4300 is new and unused, you can buy CVCO55BH-4100-4300 Crystek Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CVCO55BH-4100-4300.
